Description
Osprey Opengear Distribution Amplifier Overview

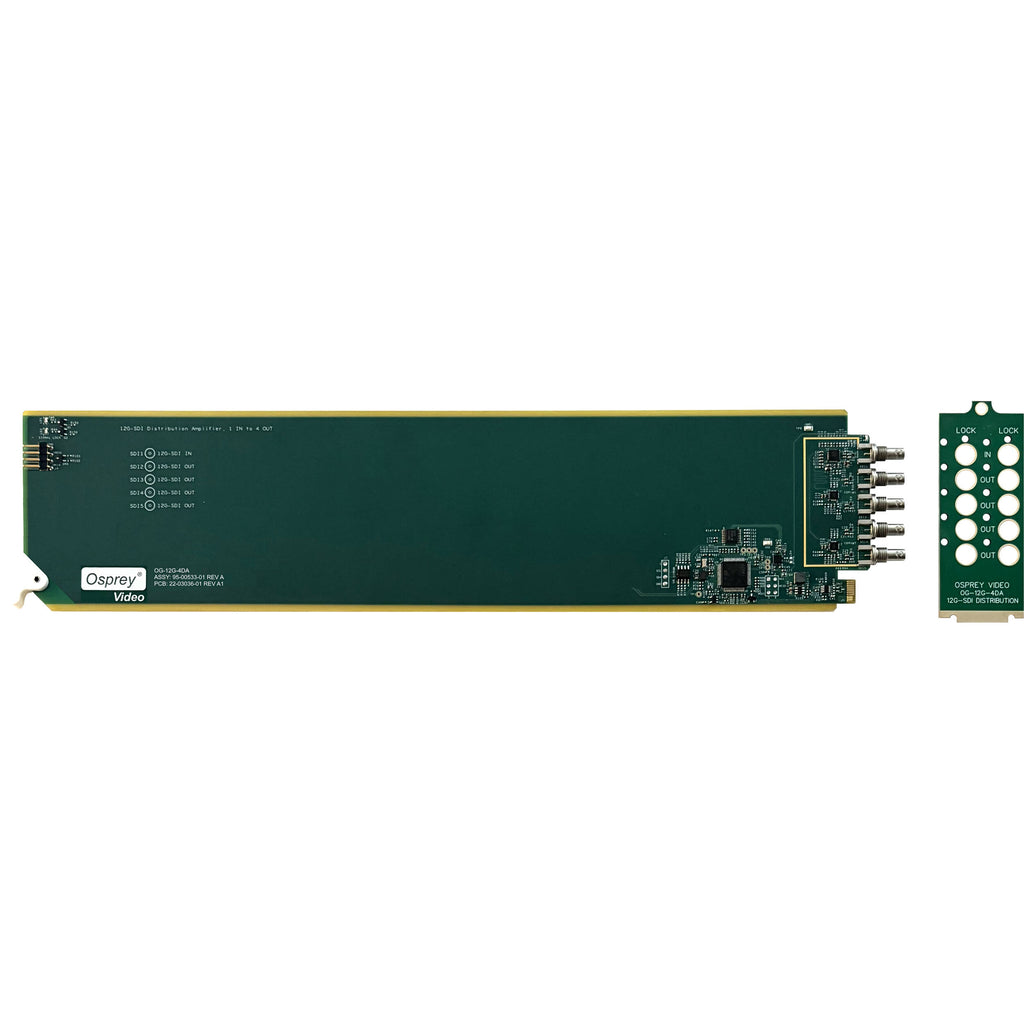

Distribute 12G-SDI source video to four 12G-SDI destinations with this OG-12G-4DA 1x4 12G-SDI Distribution Amplifier Card from Osprey. This distribution amplifier card is designed to take up one slot in an openGear OGx or OG3 frame, and it includes a rear module that takes up two slots.
Connections include one 12G-SDI input that distributes to four reclocking 12G-SDI outputs. The ports supports SMPTE and DVB-ASI standards, supports metadata passthrough, autodetection, and it features power and signal lock status LEDs. The card supports BNC cable lengths up to 492'.
UPC: 850010356297
Items Included
- Osprey OG-12G-4DA 1x4 12G-SDI Distribution Amplifier Card
- Rear Module
- Mounting Hardware
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Osprey Opengear Distribution Amplifier Specs
Key Specs
| Inputs |
1 x BNC (12G-SDI)
|
| Embedded Audio |
SDI
|
| Outputs |
4x BNC (12G-SDI)
|
Interfaces
| Inputs |
1 x BNC (12G-SDI)
|
| Embedded Audio |
SDI
|
| Outputs |
4x BNC (12G-SDI)
|
Standards
| Video Standard Compliance |
SMPTE 259M/344M/424M/ST 2081-10/ST 2082-11
|
| Reclocking |
Yes
|
| HDR Support |
Yes
|
| HDCP Support |
Yes
|
| EDID Support |
Yes
|
Transmission
| Max Transmission Distance |
492.1' / 150 m
|
Power
| Power Consumption |
Device: (2 W)
|
| ESD Protection |
No
|
General
| Operating Conditions |
32 to 104?F / 0 to 40?C at 10 to 90% Humidity
|
| Storage Conditions |
-40 to 140?F / -40 to 60?C
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
