Description

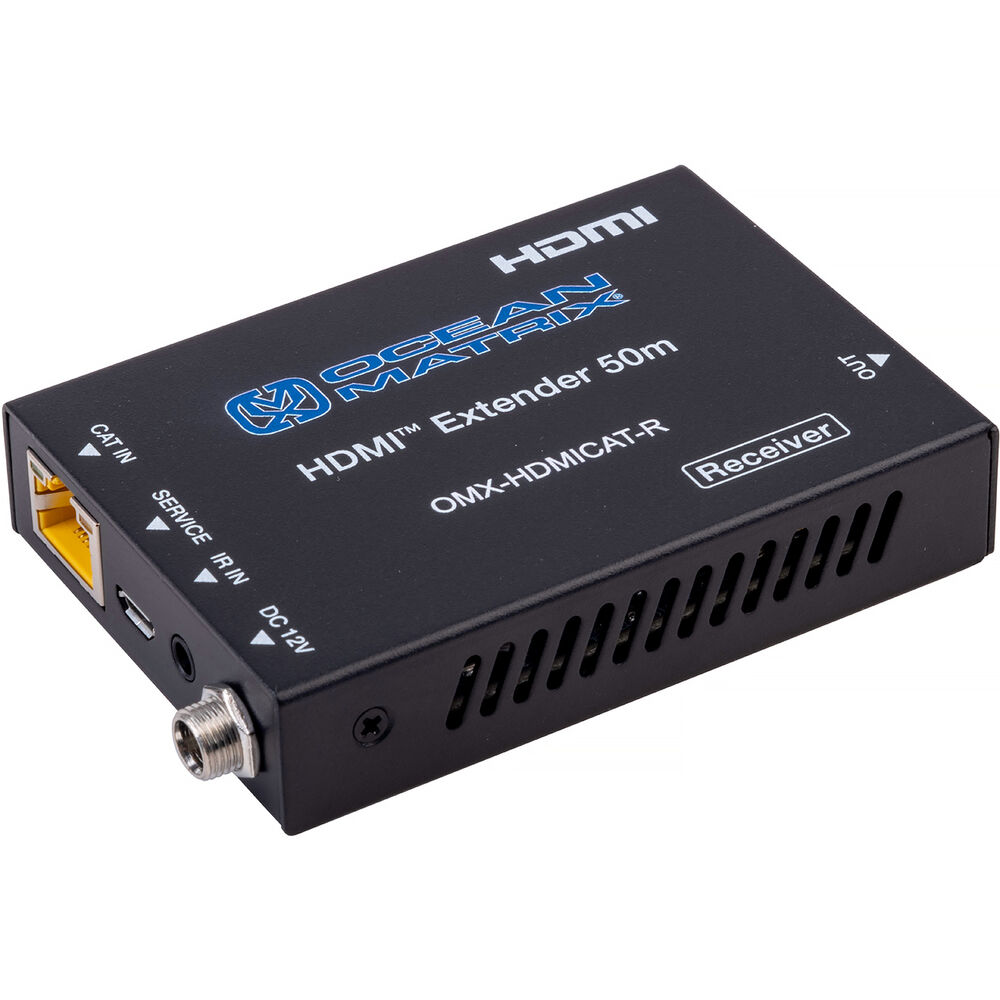

Ocean Matrix OMX-HDMICAT Overview
Extend your HDMI video to an additional endpoint with the UHD 4K HDMI over Cat 6/7 Extender Receiver from Ocean Matrix. This is an add-on receiver for OMX-HDMICAT1X4, OMX-HDMICAT1X8, and OMX-01HMET0003 RX/TX splitter/extender kits. The unit features an RJ45 input for receiving HDBaseT signals from a separately available transmitter and an HDMI output to a destination monitor.
Other features include HDR support, HDCP 2.2 and DVI 1.0 compliance, and embedded audio passthrough. The receiver is powered using PoC from the transmitter, so you only need one power supply. It can receive UHD 4K60 video from the transmitter from up to 115' away, 4K30 video from up to 164' away, and 1080p video from up to 197' away. The compact unit features a durable metal enclosure.
- Receives UHD 4K 50/60 signals from up to 115' away from transmitter
- Receives UHD 4K30 signals up to 164' away from transmitter
- Receives 1080p up to 197' away from the transmitter
- Receives video via Cat 6/6a/7 cable
- Supports 3D, HDR, HDR10+, HLG, and Dolby Vision
- Advanced EDID management
- Supports one-way PoC (power-over-cable) from TX to RX�only one power supply is needed
- One-way IR control
- Metal enclosure
- Compatible with OMX-HDMICAT1X4, OMX-HDMICAT1X8, and OMX-01HMET0003 transmitter/receiver sets
Items Included
- Ocean Matrix UHD 4K HDMI over Cat 6/7 Extender Receiver (115')
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Ocean Matrix OMX-HDMICAT Specs
| Inputs |
1x RJ45
|
| Outputs |
1x HDMI (HDMI 2.0)
|
| Embedded Audio Output |
HDMI
|
| Other I/O |
1x 1/8" / 3.5 mm IR Input
|
| HDR Support |
Yes
|
| HDCP Support |
Yes, Version 2.2
|
| EDID Support |
Auto-Detect
|
| Max Transmission Distance |
UHD 4K at 60 Hz:
197' / 60 m (via Cat 6/6a/7) UHD 4K: 164' / 50 m (via Cat 5e) |
| Video Format |
HDMI (4:4:4)
UHD 4K: 50/60 fps |
| Audio Format |
Unspecified Digital Signal
|
| Supported Cable Types |
Cat 5e/6/6a/7
|
| Power I/O |
1x Barrel (12 VDC) Input
|
| PoE Support |
No
|
| Power Consumption |
Device: 12 VDC
|
| Operating Conditions |
32 to 140°F / 0 to 60°C
|
| Dimensions |
3.5 x 2.4 x 0.7" / 8.9 x 6.1 x 1.8 cm
|
| Weight |
0.34 lb / 154 g
|
