Description
Network Technologies MONTEST-HD4K-PTBLC Overview

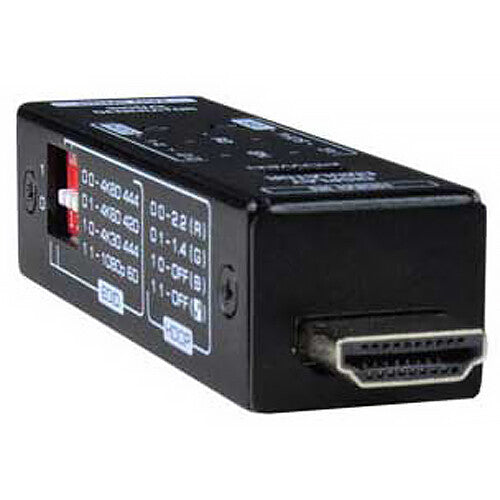

The Mini 4K HDMI Video Test Pattern Generator/Analyzer/Emulator from Network Technologies works as both a signal generator and display emulator to help ensure proper installation of your HDMI ecosystem. The device supports up to 4K60 video resolutions. Male HDMI input and output connectors insert into a wide variety of devices and generate four different test patterns. When in emulation mode, the device provides EDID to the HDMI source device from its internal memory. An integrated 4-pin DIN switch allows you to set the video resolution and HDCP version. Power is delivered to the device via micro-USB in signal generator mode and via plug-in power in display emulation mode.
- Two modes of operation: HDMI signal generator or display emulator (signal analyzer)

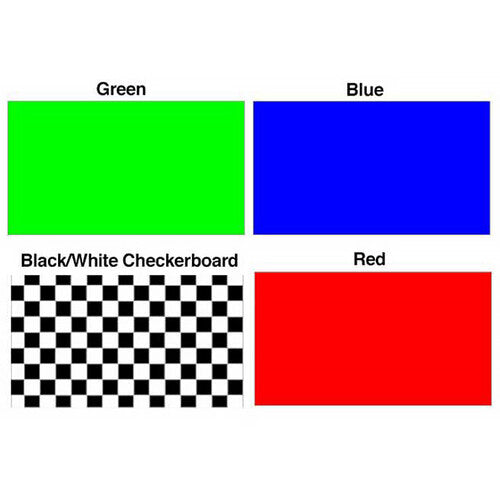

- Generates four test patterns and features four built-in resolutions
- Supports headless operation; no monitor attached to the source
- Use to analyze the HDCP version and signal status (TMDS, 5V) of the video input

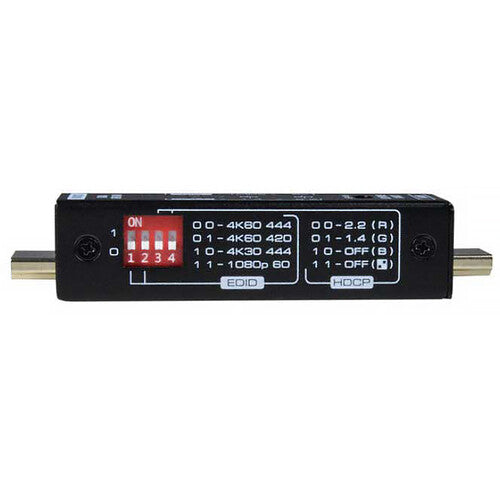

- 4-pin DIP switch for setting video resolution and HDCP version

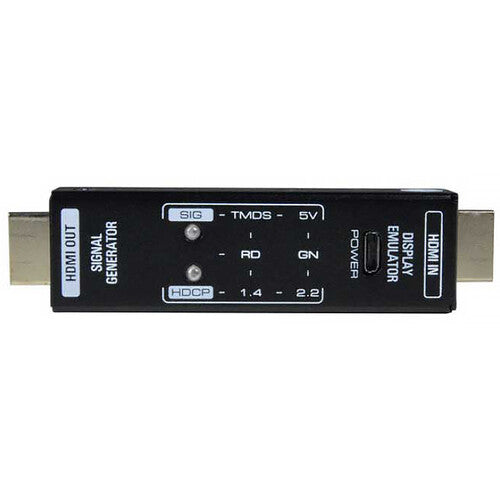

- LED indicators provide TMDS/5V signal and HDCP status information
- Portable, compact design
Items Included
- Network Technologies Mini 4K HDMI Video Test Pattern Generator/Analyzer/Emulator
- USB Power Cable
- Cloth Bag
- Limited 2-Year Manufacturer Warranty
Additional Resources
Network Technologies MONTEST-HD4K-PTBLC Specs
| USB I/O |
1 x Micro-USB Female Input
|
| Video I/O |
1x HDMI Input
1x HDMI Output |
| Supported Resolutions |
Signal Generator Mode:
3840 x 2160 at 60Hz 4:4:4 3840 x 2160 at 60Hz 4:2:0 3840 x 2160 at 30Hz 4:4:4 1920 x 1080p at 60Hz Emulation Mode: 4K x 2K up to 4096?2160 and 3840 x 2160 at 60Hz 4:4:4 1920 x 1080p at 60Hz |
| Video Bandwidth |
600 MHz, 18 Gb/s
|
| Power Source |
USB, Plug-In Power
|
| DC Input Power |
5 VDC at 1 A
|
| Color |
Black
|
| Certifications |
CE, FCC, RoHS
|
| Operating Conditions |
23 to 131?F / -5 to 55?C at 10 to 90% Humidity
|
| Storage Conditions |
-13 to 158?F / -25 to 70?C at 10 to 90% Humidity
|
| Cable Length |
3.4' / 1 m
|
| Dimensions |
3 x 0.9 x 0.7" / 75 x 22 x 19 mm
|
