Description
Network Technologies USB-C5-200 Overview

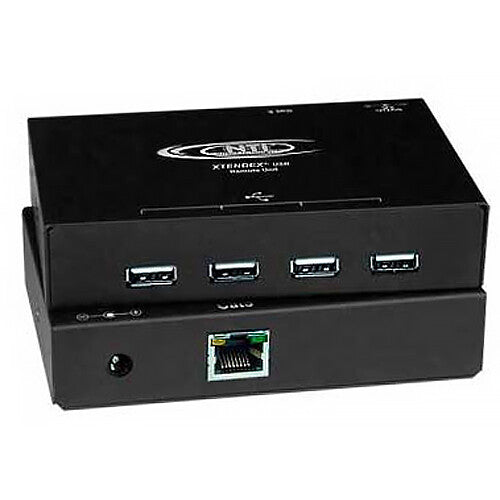

The 4-Port USB Extender from Network Technologies comprises local and remote units that enable you to extend bus- or self-powered USB devices using Cat 5e, 6, 6a, or 7 cable. This plug-and-play system offers multi-platform support and is compatible with USB 1.1 and 2.0 devices. Its rugged steel housing provides both crimp-on and solder ground terminals, and it includes an AC power adapter.
Extension via Cat Cable
- Extends USB 1.1/1.0 devices to 180' and USB 2.0 devices to 150' via Cat 5e/6 cable.
- Extends USB 1.1/1.0 devices to 200' and USB 2.0 devices to 180' via Cat 6a/7 cable.
Additional Details
- Transparent data extension.
- Compliant with USB 1.1 (low/full speed) specifications.
- Meets the ESD (electrostatic discharge) IEC/EN 61000-4-2 immunity requirements.
- Plug and play design.
- Rugged steel housing with durable powder-coat finish.
- Includes brackets for surface or wall mounting.
Items Included
- Network Technologies 4-Port USB Extender (200')
- Local Unit
- Remote Unit
- AC Power Adapter
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies USB-C5-200 Specs
Transmitter Interfaces
| Transmitter Other I/O |
1x RJ45
4x USB-A Input/Output |
Receiver Interfaces
| Receiver Other I/O |
1x RJ45 Input/Output
1x USB-B Input/Output |
Transmission
| Max Transmission Distance |
180' / 54.9 m (via Cat 5e/6)
200' / 61 m (via Cat 6a/7) |
| Supported Cable Types |
Cat 5e/6/6a/7
|
Power
| Receiver Power I/O |
1x Barrel Input
|
| PoE Support |
Yes
|
General
| Operating Conditions |
32 to 100?F / 0 to 38?C at 17 to 90% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C at 17 to 90% Humidity
|
| Transmitter Dimensions |
5.2 x 3.1 x 1.1" / 131 x 78 x 28 mm
|
| Receiver Dimensions |
5.2 x 3.1 x 1.1" / 131 x 78 x 28 mm
|
