Description
Provided by third party:

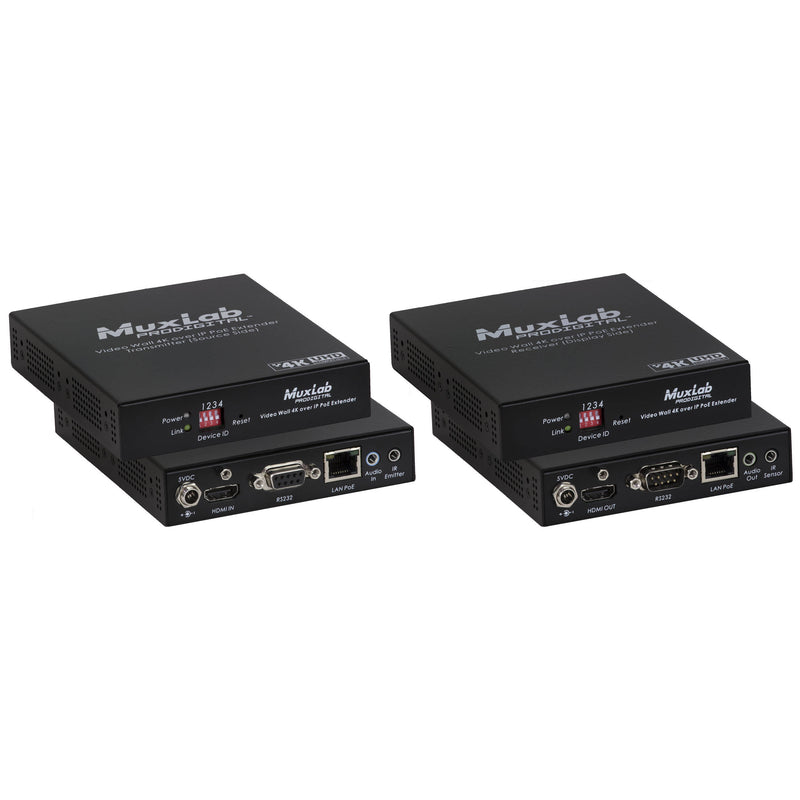

The Video Wall 4K over IP PoE Extender Kit allows HDMI equipment supporting up to 4K @ 30 Hz or 1080p at 60 Hz resolution to be connected and extended to create a video wall of user configurable size (X by Y) supporting 100's of screens, depending on network bandwidth, utilizing one receiver for each display in the array. The transmitters and receivers support PoE (PD) and may be powered by a PoE (PSE) Ethernet switch.
- Key Features
-
- Configure a video wall array with 100's of displays, depending on network bandwidth
- Supports up to 4K @ 30 Hz and 1080p @ 60 Hz
- Visually lossless video (1 frame latency)
- Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
- Transmission up to 330 ft (100 m) over Cat5e/6
- Supports audio insert (TX) & audio extract (RX)
- Supports RS232 and IR transmission for remote control
- PoE powered
UPC: 627699007594
| General | |
|---|---|
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Networking | |
|---|---|
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, HDMI, infrared |
| Max Video Bandwidth | 300 MHz |
| Max Transfer Distance | 328 ft |
| Features | Power over Ethernet (PoE), 4K resolution support |
| Compliant Standards | IEEE 802.3af |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A female 1 x RS-232 - DB-9 male 1 x IrDA - mini jack female 2 x Ethernet 1000Base-T (PoE) - RJ-45 female 1 x audio (input) - mini jack female 1 x HDMI (output) - 19 pin HDMI Type A female 1 x RS-232 - DB-9 female 1 x audio (output) - mini jack female |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC, RoHS |
| Power | |
|---|---|
| Power Over Ethernet (PoE) | PoE |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Dimensions & Weight | |
|---|---|
| Width | 4.4 in |
| Depth | 5.1 in |
| Height | 1 in |
| Weight | 23.98 oz |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 �F |
| Max Operating Temperature | 104 �F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
