Description
- Transmits over 1 Single-mode Fiber
- FC Optical Connector

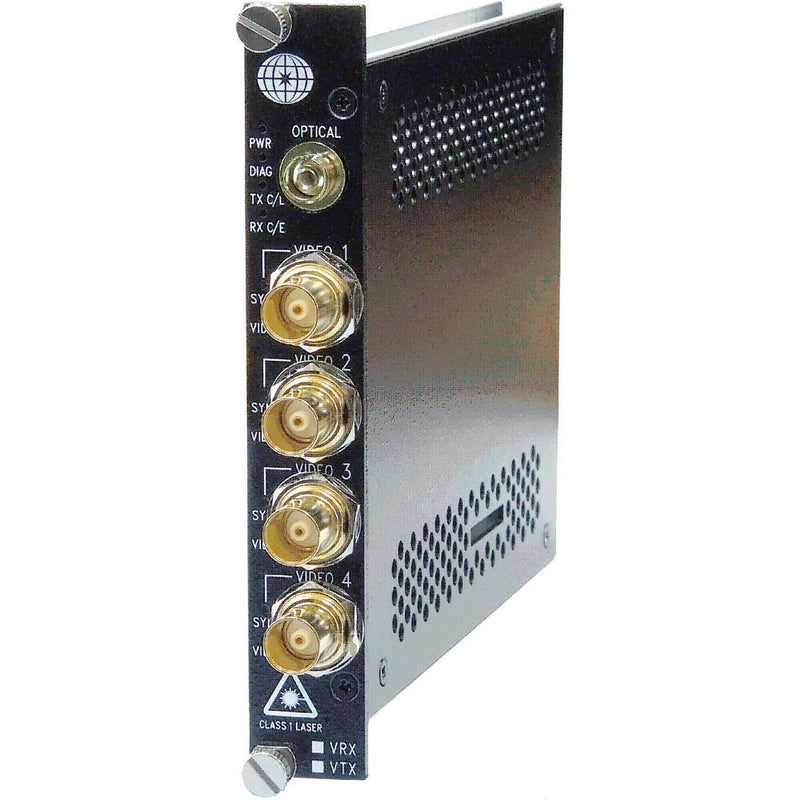

The Meridian Technologies ST-4HG-51/57FC 4-Channel Multi-Rate SDI/HD-SDI/3G Video Transmitter from the ST/SR -4HD-CWDM DigiView transmitter and receiver system series, transmits 4 channels of real-time�SDI/HD-SDI/3G video signals over 1 single-mode fiber via�FC optical connector. Using CWDM (Coarse Wavelength Division Multiplexing) technology, the content details of each video channel are preserved by real-time transmission of each video channel in a compact card format. This digital video transmitter provides broadcast quality transmission of the industry-standard range of digital video data rates. No user adjustments are required, ensuring fast deployment and setup with broadcast quality results. The entire electrical and optical subsystems are housed in a standard Meridian Technologies 1-slot card design for mounting in any venue, particularly space constrained areas.
- Bi-directional transmission of multi-rate SDI, HDSDI, and 3G video signals over 1 single-mode fiber
- Real-time and uncompressed video transmission
- Supports SMPTE 310M (19.4 Mbps), SMPTE 259M/344M (143 to 540 Mbps), SMPTE 292M HDTV (1.485 Gbps), DVB-ASI (270 Mbps), and SMPTE 305M (SDTI rates)
- Error-free pathological pattern performance
- Rack mounted card unit
- Supports embedded audio and metadata
- Distances in excess of 18.64 mi (30 km)
- Wide dynamic range eliminates the need for optical attenuators
- Requires no user adjustments
- Applications include remote broadcast camera links, sporting events and concerts, media feeds, video production, studio to studio and head end feeds, military information displays, and video transport systems
- Transmitter with 1-Slot Card
- 10-Year Limited Warranty on the Transmitter
- 5-Year Warranty on the Optical Connector
| Formats | SMPTE 310M (19.4 Mbps) SMPTE 259M/344M (143 To 540 Mbps) SMPTE 292M HDTV (1.485 Gbps) DVB-ASI (270 Mbps) SMPTE 305M (SDTI rates) |
| Nominal Level | 0.8 Vpp Maximum: 1 Vpp |
| Data Rate | 19 Mbps to 1.5 Gbps per channel |
| Impedance | 75 ? |
| Gain | Unity |
| Coupling | Input: AC |
| Return Loss | >15 dB |
| Jitter | Pattological Data Pattern: <0.2 UI |
| Cable Equalization | Automatic: 0 to 656.17' (0 to 200 m) @ 1.5 Gbps |
| Bit Error Rate | 10 -12 (0 to -20 dBm) |
| Connectors | Video: 75 ? BNC (gold center pin) Optical: FC |
| Wavelength | Channel 1: 1510 nm Channel 2: 1530 nm Channel 3: 1550 nm Channel 4: 1570 nm |
| Output Power | 3 dBm per channel |
| LED Indicators | Green 1: Power on 4: Signal present 4: Laser |
| MTBF | >170,000 hours @ ground fix 95�F (35�C) per MIL217F |
| Number of Slots | 1 |
| Temperature | Operating: 14 to 122�F (-10 to 50�C) Storage: -67 to 185�F (-55 to 85�C) |
| Relative Humidity | 0 to 95% (non-condensing) |
| Dimensions (L x W x D) | Card: 6.3 x 5 x 0.80" (160 x 127 x 20 mm) |
| Weight | Card: 16 oz (450 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.5 lb |
| Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
