Description
- Receiver
- Singlemode Fiber
- Unidirectional Audio
- Hot-Swappable

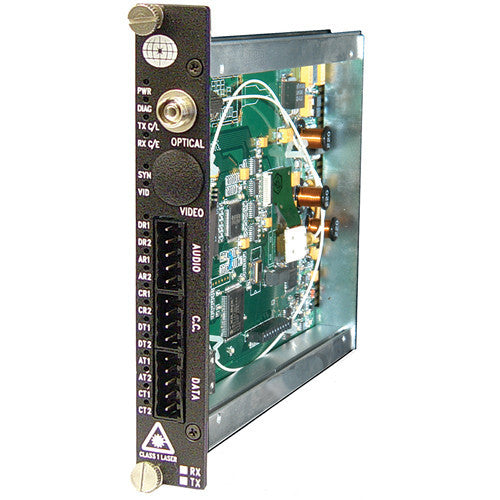

The SR-2A-3 Fiber Transmission System (Receiver) from Meridian Technologies incorporates an all-digital encoding technology that supports two unidirectional audio channels over one optical fiber. This model uses singlemode fiber. It is well suited for use in intelligent transportation systems, security & surveillance work, access control, among many other applications and settings.
Local indicators provide a visual indication of the status of each audio channel. 3-pin terminal blocks are used for connection of the audio channel interfaces. This series is also compatible with Meridian's SpectraSmart Network management and diagnostic PC-based system.
The DigiSlim product family is available as rack mount cards and modules that can be installed in any of Meridian's desk chassis or in 19" racking frames. This system can be configured in either star (module to rack) or trunking (rack to rack) configurations. These systems can be transformed in to a standalone module by using SR-500/S (standard configuration) or SR-1000/S frames.
- The device supports unidirectional audio
- This model is a laser-based system that uses singlemode fiber
- This model uses ST or FC fiber connectors
- It features 24-bit native digital encoding
- It uses Surface Mount Technology (SMT) for high reliability and repeatability
- This solution is designed to be reliable and repeatable
- Local LED indicators provide visual cues for system status
- System diagnostics are available for performance parameters
- The card is hot-swappable
- The laser features biased photo-detector circuitry for stable optical output over the full temperature range
- It meets NEMA TS1/TS2 and CALTRANS specifications
- It uses internal switching power supplies
- Automatically resettable solid-state current limiters are included on all power lines to provide equipment protection
- A wide optical dynamic range means optical attenuators are never needed
- Screw terminals are available for audio
- Ten-Year Warranty Against Defects in Material & Workmanship (from Original Date of Shipment)
| Audio | I/O Impedance: 600 Ohm (Balanced), 47 kOhm (Unbalanced) Frequency Response: 10Hz to 20KHz SNR: >90dB (Weighted) @ 1KHz In/Out Level: -8 to +8dBm (4Vp-p max.) Total Harmonic Distortion: <0.01% @ 1KHz Resolution: 24 Bi |
| Optical | Fiber Type/Size (um): Singlemode (FP Laser) 9/125 Optical Output (dBm): -5 Receiver Sensitivity (dBm): -26 Optical Budget (dB): 21 Wavelength (nm): 1310/1550 Optical Connector: ST, FC Optical Dynamic Range (dB): 24 Fiber Data Rate: 250Mbps |
| Connectors | Video: 75 Ohm BNC (Gold Center Pin) Optical: ST, FC Audio/Contact Closures: 14-pin Screw Terminals |
| Indicators | (1) Green: Power On (1) Bi-Color: TX Carrier/ Laser Over Current (1) Bi-Color: RX Carrier - Present / Error (1) Bi-Color: Audio Present / Overmodulation |
| Life | >170,000 hours @ Ground Fix 35C degrees per MIL217F |
| Power | 6W |
| Dimensions (HxWxD) | 0.8 x 6.5 x 5" (20 x 160 x 127mm) (1) slot |
| Weight | 1 lbs (0.45kg) |
| Packaging Info | |
|---|---|
| Package Weight | 1.4 lb |
| Box Dimensions (LxWxH) | 9.7 x 6.9 x 3.1" |
