Description

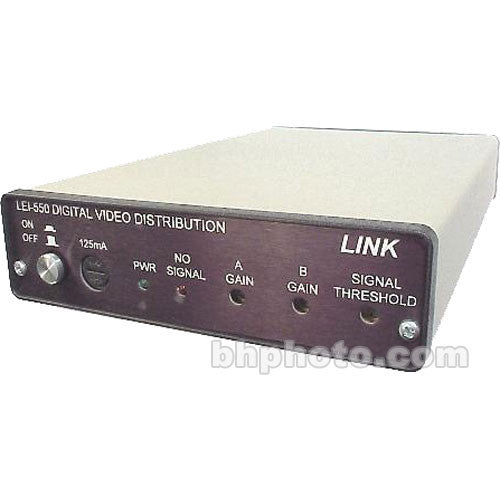

The Link Electronics LEI-550 is a 1x6 SDI video distribution amplifier; this unit offers automatic EQ and gain control in a compact size.
- Gain Control
- Gain control outputs allows the user to adjust video levels to correct parameters.
- Compact Size
- The compact size of the LEI-550 allows the user to mount three units in a one rack unit space.
- Equalization
- The signal is reshaped with automatic equalization also reslicing and DC restoring.
In the Box
Link Electronics LEI-550 1x6 SDI Distribution Amplifier - Composite Video, Gain Control, Desktop
- 10 Year Warranty
| Input | SDI Video , 143 Mb/s to 360 Mb/s @ 75 ohms, on a BNC connector |
| Output | SDI Video x6 , 143 Mb/s to 360 Mb/s @ 75 ohms, on BNC connectors |
| Video Bandwidth | Accepts up to 360 Mb/s |
| Video Signal-to-Noise Ratio | Not Specified by Manufacturer |
| Differential Phase | Not Specified by Manufacturer |
| Differential Gain | Not Specified by Manufacturer |
| Video Control | On and Off Button A and B Gain control |
| Coupling | DC Servo AC |
| Dimensions (WxDxH) | 5.5 x 9.25 x 1.0" 13.97 x 23.5 x 2.5cm |
| Weight | 2 lbs 8 oz |
| Power Source | 120 to 240 VAC @ 50/60 Hz |
| Packaging Info | |
|---|---|
| Package Weight | 2.0 lb |
| Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
