Description

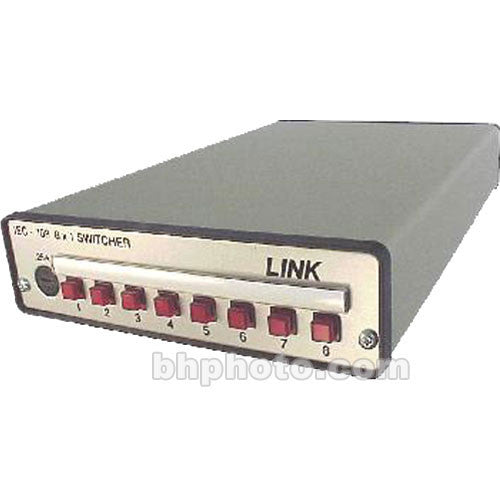

The Link Electroncs IEC-708 is an 8x1 vertical interval, composite video switcher. This unit features momentary push buttons for selection and a compact size.
- Compact
- Measuring less than 6" wide, this unit will fit on desktops or small studio spaces.
- Vertical Interval
- Switching is glitch free with vertical interval; sync is derived from the video at the output stage of this switcher.
- Dual Outputs
- Dual outputs allow for monitoring or routing the output signal to two separate targets.
- Rackmountable
- Three IEC-708 units can be mounted side by side in the PRT-700 rack tray.
In the Box
Link Electronics IEC-708 8x1 Composite Video Switcher - Vertical Interval, Lighted Push Buttons, BNC
- 10 Year Warranty
| Input | Composite Video x8 , 1 Vpp @ 75 ohms, on BNC connectors |
| Output | Composite Video x2 , 1 Vpp @ 75 ohms, on a BNC connector |
| Switch Type | Vertical Interval Utilizing Digital Switching Logic |
| Video Bandwidth | 30 MHz |
| Video Signal-to-Noise Ratio | 60 dB |
| Differential Phase | 0.1� |
| Differential Gain | 0.5% |
| Control | Front Panel lighted Momentary buttons for Input Selection |
| Power Source | 115 VAC @ 60 Hz |
| Dimensions (WxDxH) | 5.5 x 9.25 x 1" 14 x 23.5 x 2.5cm |
| Weight | 1 lb 454 grams |
| Packaging Info | |
|---|---|
| Package Weight | 2.0 lb |
| Box Dimensions (LxWxH) | 10.2 x 6.1 x 2.1" |
