Description

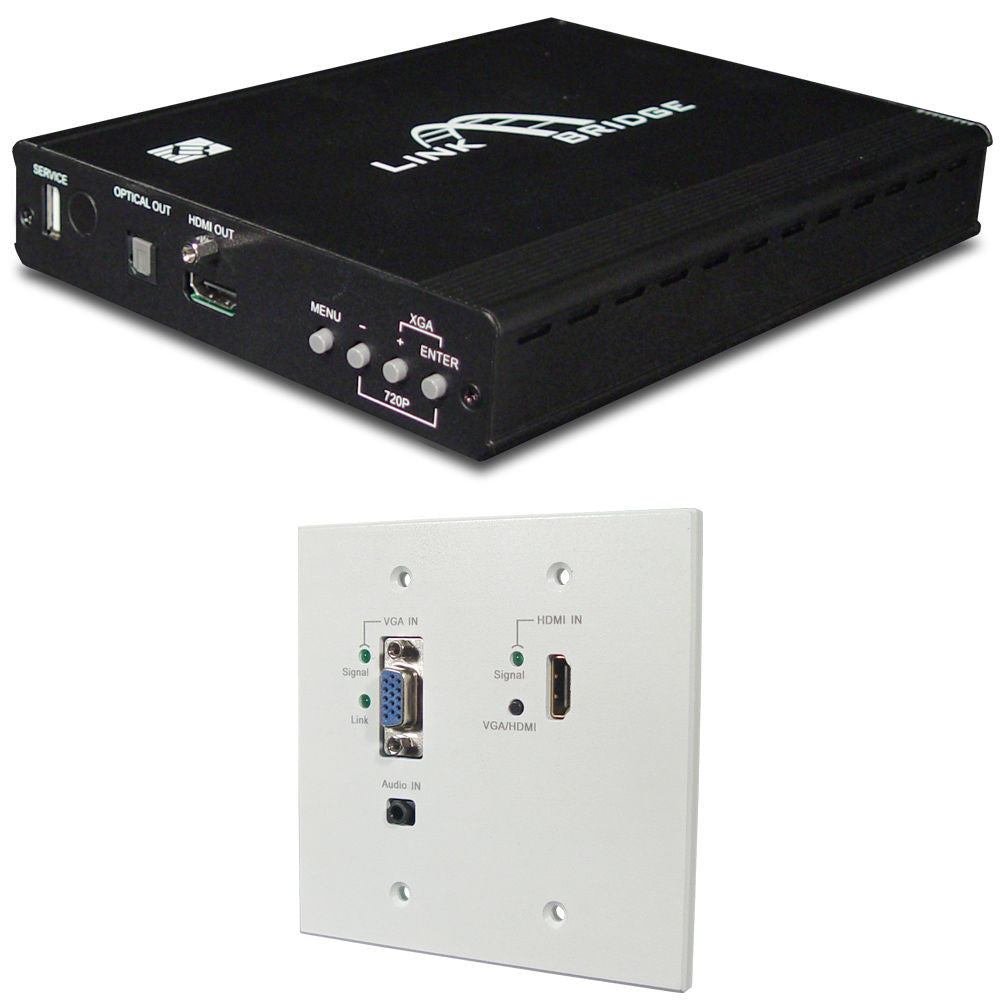

The Link Bridge Kit includes an HDBaseT HDMI/VGA Wall Plate Transmitter and a 5Play HDMI Auto-Scaling Receiver . The transmitter carries a selectable HDMI or VGA/Audio signal input over one Cat5e/6 cable to the HDMI receiver at a maximum distance of 230'.
- HDMI/VGA HDBaseT Wall Plate Transmitter

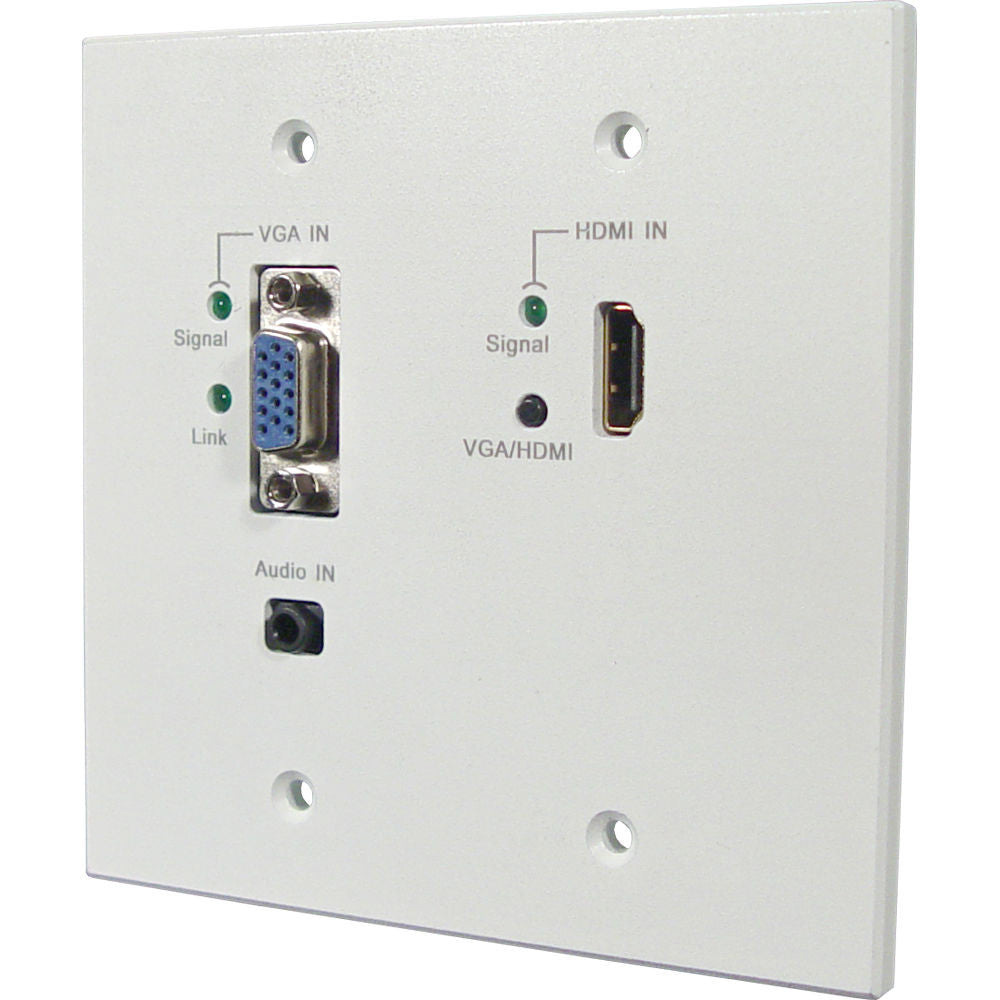

Transmit high-quality audio and video over 230' using a single cable with the Link Bridge HDMI/VGA HDBaseT Wall Plate Transmitter . All the electronics are mounted on the wall plate for clean installation in A/V closets or presentations rooms. The HDBaseT interface transmits audio, video, power, and control data over a single cable for a simple wiring solution without any quality loss.
The front panel of this device houses HDMI and VGA inputs. The unit can automatically switch to an active input, or the input can be manually selected using the front-panel switch or RS-232 control. The VGA input will be converted to an HDMI signal so it can be transmitted via HDBaseT. While using the VGA input, an analog 3.5mm stereo input is provided for embedding audio. The HDMI input supports Full HD as well as UHD and DCI 4K signals. HDCP, EDID, and other protocols are passed through the HDBaseT feed. - LBC-H-R-SCL HDBaseT Receiver/Scaler (Full HD & WUXGA)

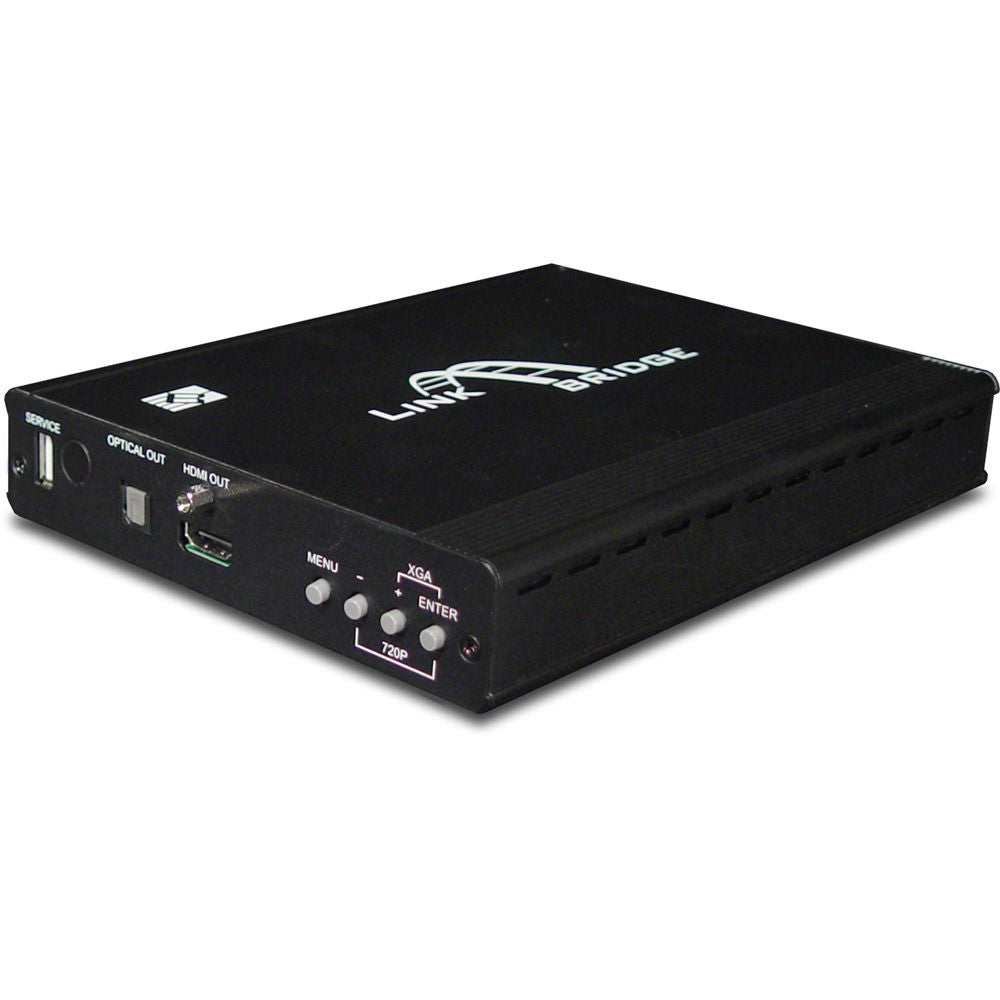

Link Bridge 's LBC-H-R-SCL HDBaseT Receiver/Scaler can be easily integrated into an existing HDBaseT setup. Its HDBaseT input breaks out into an HDMI output, a separate optical audio output, a bidirectional RJ-45 LAN interface, and a bidirectional RS-232 interface which also supports IR control.
Incoming video signals can be adjusted and scaled using the OSD menu system. Other image controls include contrast, brightness, hue, saturation, sharpness, RGB level, and scan size. Since the HDBaseT signal contains an uncompressed, unmodified HDMI signal, there is no difference in quality from the input to the output, and all data and protection protocols are maintained. Resolutions up to 1920 x 1200 (WUXGA) are supported. This is a 5Play device, which means it can carry HDMI, LAN, IR, RS232, and up to 100W of power over 328' using a single HDBaseT twisted-pair interface.
- Power Supply
- Limited 1-Year Warranty
- Power Supply
- Limited 1-Year Warranty
- HDMI/VGA HDBaseT Wall Plate Transmitter
Video Resolution: 4096 x 2160 up to 60p, 1920 x 1080 up to 60p
Connectors: HDMI, VGA
Protocol Support: DDC/EDID/HDCPAudio Channel Capacity: 1 x L/R analog
Operating Mode: Unbalanced (stereo audio)
Input Impedance: 10 kOhms
Connectors: 3.5mm Stereo jackControl Channel Capacity: 1
Signal Format: RS-232
Data Rate: Up to 57.6 kBbaud
Connector: Terminal blockTransmission Cable Type: Cat5e/6
Number of Cables: 1
Connector: RJ-45
Max Distance: 229' / 70 mOperating Temperature 32 to 131�F / 0 to 55�C Humidity 5 to 95% RH, non-condensing Dimensions 4.6 x 1.6 x 4.5" / 116 x 39 x 114 mm Weight Not specified by manufacturer Packaging Info Box Dimensions (LxWxH) 9.5 x 7.4 x 2.8" - LBC-H-R-SCL HDBaseT Receiver/Scaler (Full HD & WUXGA)
Connectors 1 x HDMI
1 x RJ45, 100 Mbps LAN Network
2 x 3.5 mm stereo plug, IR
1 x 9-pin Sub-D, RS-232 portVideo Resolution Supported Up to 1080p, or UXGA (1920 x 1200) IR 30-50 kHz data rate RS232 Up to 57.6 kBaud Transmission Type: HDBaseT
Cable Type: Cat5e/6
Connector: RJ45Power Consumption 24 VDC, 2.7 A (max) Operating Temperature 32 to 104�F (0 to 40�C) Dimensions 5.7 x 7.9 x 1.2" (14.5 x 20.1 x 3.0 cm) Weight Not specified by the manufacturer Packaging Info Box Dimensions (LxWxH) 11.9 x 10.2 x 2.9"
