- Embeds Analog Audio into SDI Signals
- Loop-Through SDI Output
- DIP Switch Audio Channel Selection

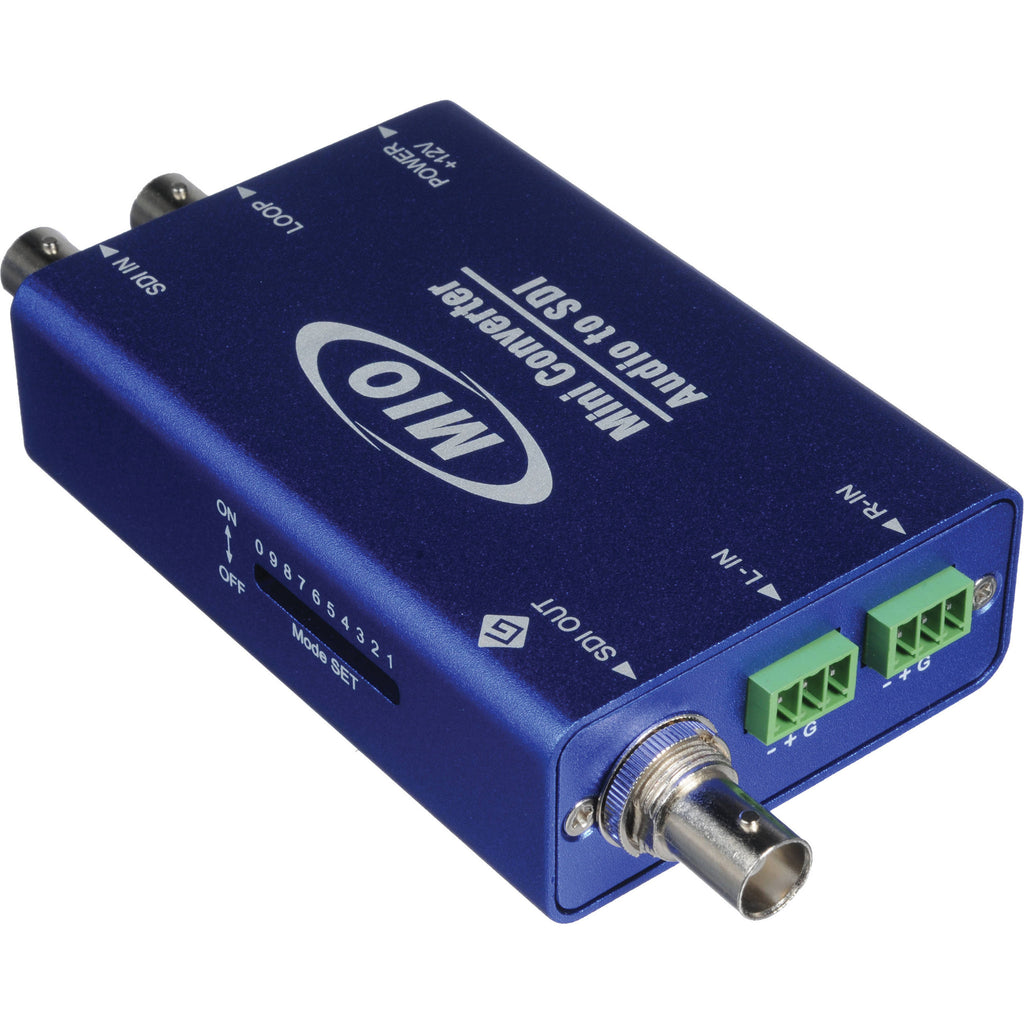

The MIO EMB-HDSDI SDI Stereo Analog Audio Embedder form Gra-Vue is designed to embed an analog audio stereo signal into a single SDI input signal and output 2 identical SDI signals with the embedded audio. There is also a loop SDI output that outputs the original SDI signal without the additional embedded audio channels. It supports SD-SDI, HD-SDI, and 3G-SDI for both input and outputs. Also, digital signals with embedded or non-embedded audio can be used as input signals.
The MIO EMB-HDSDI supplies a real-time input signal status indicator and a power indicator which makes it more convenient to monitor. Additionally, the embedded audio channel can be selected with a DIP Switch.
- 1 analog audio stereo signal embedded into a single serial digital signal
- Inputs and outputs for SD-SDI, HD-SDI, and 3G-SDI
- Supports self-definition embedded audio channel via the DIP switch
- All audio interfaces adopt 3-pin connectors and balanced inputs
- Real-time input signal status indicator and power indicator
- Supports bypass function with power on
- Easy to install, and can be widely used in broadcasting systems, studios, and other professional audio fields
- Convert one channel digital video and two channel analog audio to one embedded SDI effectively
| Digital Video Input |
| Input | 1 x 3G / HD / SD-SDI, BNC |
| Impedance | 75 ? |
| Resolution | SD: 525i 60, 625i 50
HD: 720p 50 / 60
1080p 50 / 60, 1080p 24 / 25 / 30 |
| Digital Video Output |
| Outputs | 2 x 3G / HD / SD-SDI, BNC
1 x 3G / HD / SD-SDI Loop, BNC |
| Impedance | 75 ? |
| Level | 800 mV, ±10% |
| Jitter | <0.2 UI 100 kHz |
| Physical |
| Power Consumption | 12 VDC, 1 A |
| Dimensions | 5.0 x 4.0 x 1.1" (123.0 x 92.0 x 29.0 mm) |
| Packaging Info |
| Package Weight | 0.95 lb |
| Box Dimensions (LxWxH) | 7.5 x 4.5 x 3.0" |
In the Box
Gra-Vue SDI Stereo Analog Audio Embedder
