Description

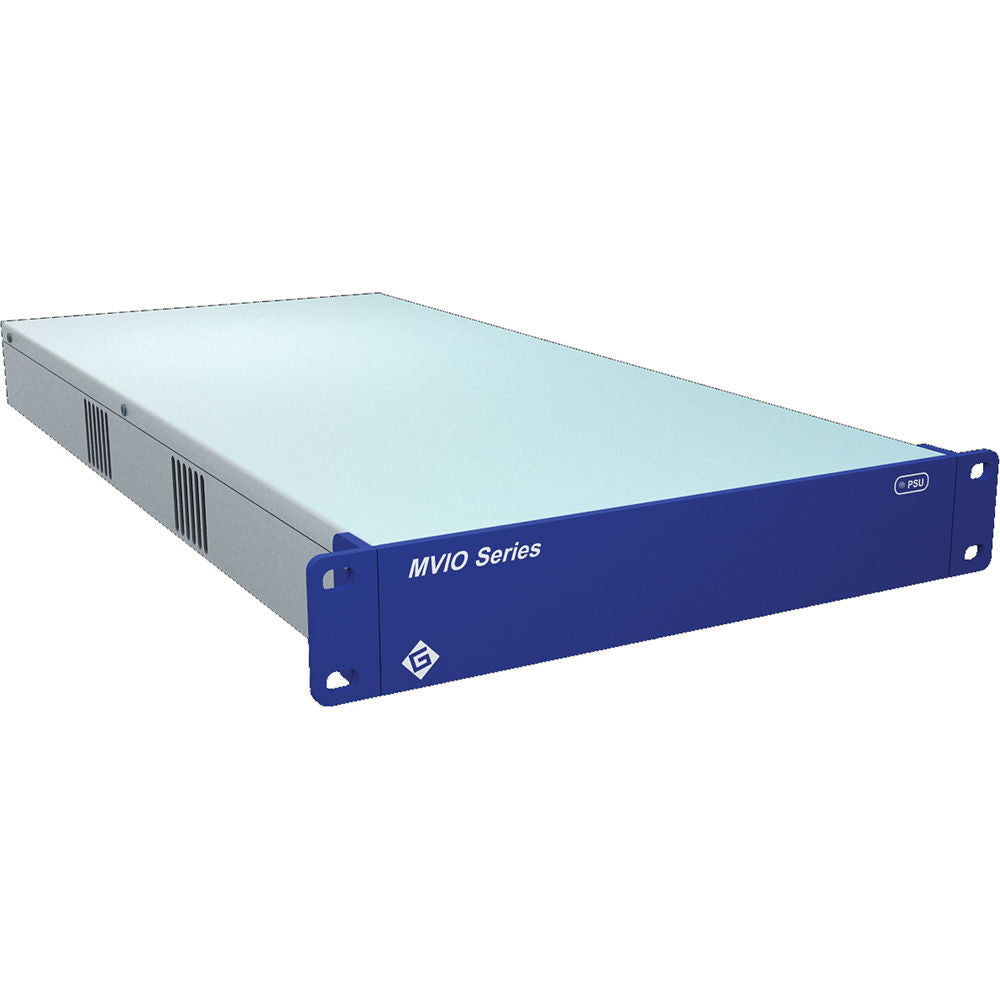

The MVIO XC-2AES 2 Digital Audio Embedded HD-SD Cross Converter from Gra-Vue upconverts or down converts one SD/HD-SDI signal to output two HD/SD-SDI signals and a loop-through SD/HD-SDI signal. The module features an HD/SD self-adaptive input and can embed 2 digital audio channels into the outputs. This module can amplify and de-noise output signals and supports AFD (Active Format Description).

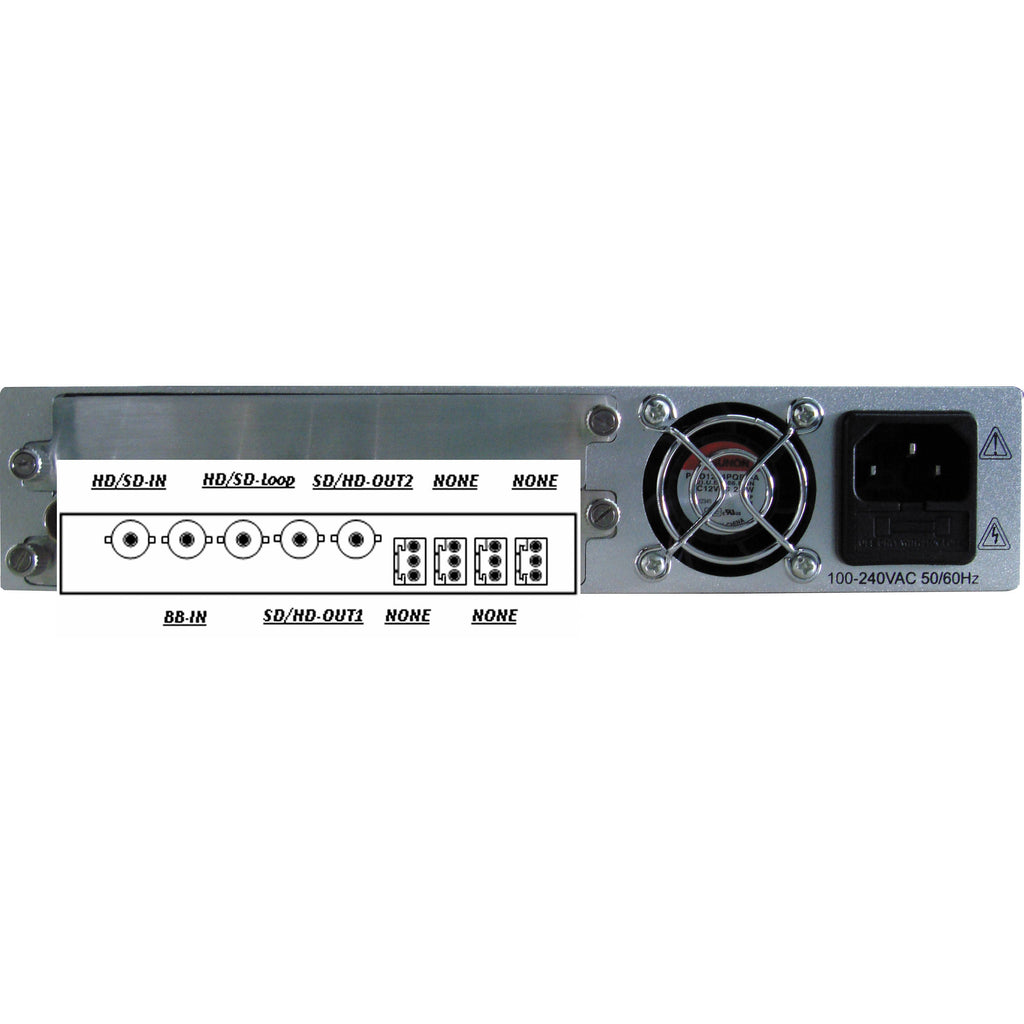

The video connectors are BNC while the audio input connectors are 3-pin balanced. Its filter de-interlacing and graphic enhancing allow for high-quality video graphics. The module supports manual parameter adjustment with a dial switch on the board side.
- One SD/HD-SDI video signal self-adaptive input
- Through up or down conversion, outputs 4 HD/SD-SDI signals
- Outputs two loop-through SD/HD-SDI signals
- Supports two embedded digital audio outputs
- Graphic enhancing eliminates noise from video graphics
- Both input and output are available on PAL/NTSC
- Supports HD/SD-SDI signal of embedded audio
- Supports AFD (Active Format Description)
- By de-interlacing filter on video, the module can output video graphics of high-quality
- Supports hot swag
In the Box
Gra-Vue MVIO XC-2AES 2 Digital Audio Embedded HD-SD Cross Converter
- Limited 1-Year Warranty
| Digital Video Input | |
|---|---|
| Input Connector | 1 x SD/HD-SDI, BNC |
| Impedance | 75 ? |
| Format | SMPTE 259M-C; 270 Mb/s; 625i, 25i SMPTE 29M; 1.485 Gb/s; 1080i, 720p |
| Digital Video Output | |
|---|---|
| Output Connector | 1 x SD/HD-SDI?BNC 2 x HD/SD-SDI, BNC |
| Impedance | 75 ? |
| Format | SMPTE 259M-C; 270 Mb/s; 625i, 525i SMPTE 292M; 1.485 Gb/s; 1080i, 720p |
| Digital Audio Inputs | |
|---|---|
| Output Connector | 2 x 3-pin, balance |
| Impedance | 110 ? |
| Format | AES3 |
| Output Level | 3.5 Vpp � 10% |
| Power Consumption | 60 W |
| Dimensions | 8.66 x 16.92 x 1.73" (220 � 430 � 44 mm) |
