| ₹ 42470.0 includes GST and import duties. | |
| B2B customers can avail ₹ 6476.68 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

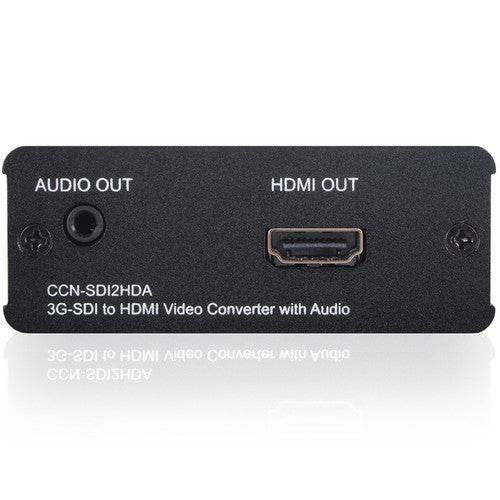

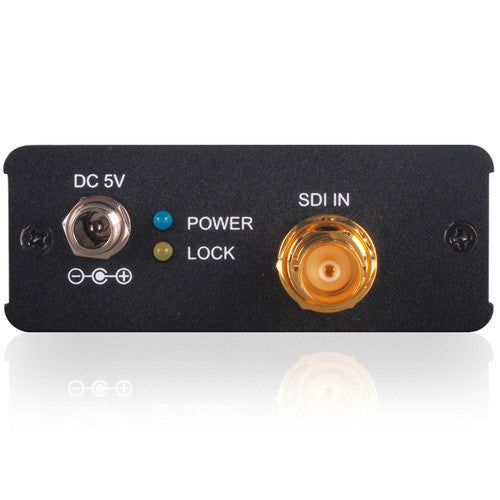

The black Pro AV/IT 3G-SDI to HDMI Video Converter from Comprehensive allows SD-SDI, HD-SDI, and 3G-SDI signals to be shown on an HDMI display. It features high bitrate of 2.97 Gb/s to give you high-bandwidth lossless signal transmission for up to 1000'. The external audio output allows you to send the audio signal originally embedded in the SDI input to an amplifier or to active speakers.
-
- Converts SDI source for connection to HDMI display
- Supports SD-SDI, HD-SDI, and 3G-SDI input signals with auto-detection
- SDI interface operates at bitrates of 2.970, 2.970/1.001, 1.485, 1.485/1.001 Gb/s, and 270 Mb/s
- Supports signal input and output distance of up to 1000' for SD signals, 656' for HD signals, and 330' for 3G signals
- Comes with locking PSU
- Durable metal enclosure
UPC: 808447078220
| Conversion Modes | SD-SDI (SMPTE 259M-C) to 480i / 576i HD-SDI (SMPTE 292M) to 720p @ 50 / 59.94 / 60, 1080i @ 50 / 59.94 / 60 3G-SDI (SMPTE 424M/425M-AB) to 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60, 1080p sF @ 23.98 / 24 / 25 / 29.97 / 30 |
| Inputs | Connector: 1 x BNC (1 x 3G-SDI) Modes: SD-SDI (SMPTE 259M-C @ 270 Mb/s) HD-SDI (SMPTE 292M @ 1.485 and 1.485/1.001 Gb/s) 3G-SDI (SMPTE 424M/425M-AB @ 2.970 and 2.970/1.001 Gb/s) |
| Outputs | 1 x HDMI (1 x Uncompressed AV and Data) |
| SDI Transmission Rates | Up to 2.970 Gbit/s and 2.970/1.001 Gbit/s |
| SMPTE Standards Supported | 425M Level A & B, 424M, 292M, 259M-C |
| Timing | SD-SDI: 480i / 576i HD-SDI: 720p @ 50/60, 1080i @ 50/60, 1080p @ 24/50/60 3G-SDI: 1080p @ 50/60 |
| HDMI Supported Resolutions | 480i / 576i, 720p @ 50/59.94/60, 1080i @ 50/59.94/60, 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 |
| Audio Output Format | HDMI: PCM 2/5.1/7.1 channel 3.5 mm analog: 2-channel |
| Cable Distance | 3G-SDI up to 330' (101 m) HD-SDI up to 656' (200 m) SD-SDI up to 1000' (305 m) |
| Power Supply | 5 VDC; 2.6 A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 5 W maximum |
| ESD Protection | Approximately 8 kV (air-gap discharge) Approximately 4 kV (contact discharge) |
| Chassis Material | Aluminum |
| Dimensions | 3.09 x 4.88 x 1.18" (7.85 x 12.39 x 2.99 cm) |
| Weight | 7.04 oz (200 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.1 lb |
| Box Dimensions (LxWxH) | 8.189 x 4.567 x 2.284" |
In the Box
Comprehensive Pro AV/IT 3G-SDI to HDMI Video Converter with Audio Support
- Limited 2-Year Warranty
Bulk Discount
| Quantity | Price |
| 2 | ₹ 41620.6 |
| 3-5 | ₹ 41195.9 |
| 5-10 | ₹ 40346.5 |
| 10+ | ₹ 39497.1 |
Bulk discount will be automatically applied during checkout based on quantity.
