Description
- 16-Channel AES Support
- 8-Channel Analog Audio Support
- Low-Power/High-Density Design
- SDI Input and Output

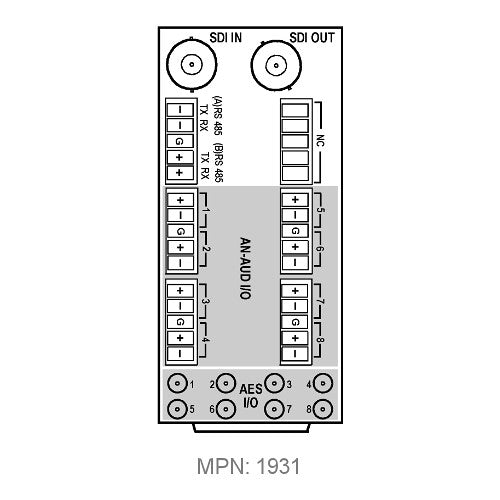

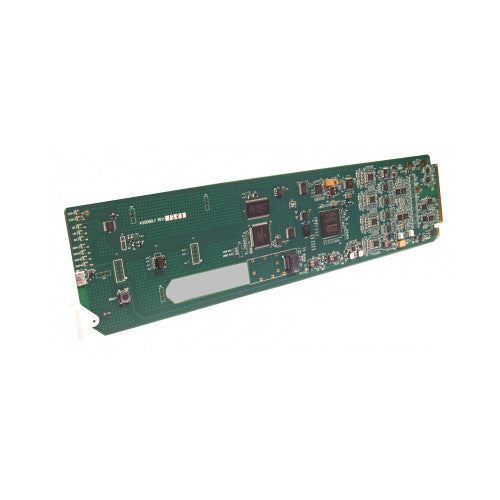

The 3G/HD/SD-SDI 16-Channel AES / 8-Channel Analog Audio Embedder/De-Embedder Card from Cobalt offers full-flexibility SDI, AES, and analog audio embedding/de-embedding in an openGear card. A rear module option (sold separately) allows for SDI via BNC, AES via coaxial, and audio via terminal strip connections.
The 9933-EMDE-ADDA provides SDI input and output, full 16-channel embed/de-embed between AES, 8-channel analog audio, and all four groups of embedded audio. Audio-embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with 48 kHz video program timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair. Analog embed/de-embed conforms with professional, balanced audio at 0 dBFS to pro 24 dBu levels using full 24-bit conversion.
Full audio cross-point allows per-channel gain and routing controls, as well as built-in tone generators. Preset save/load allows saving custom card settings while allowing a one-button revert to factory settings. Full user DashBoard or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
- 16-channel AES support and 8-channel analog audio support in one card. Individual, per-pair embedding or de-embedding. Provides four-group SDI embed/de-embed and cross-conversions between analog and AES discrete audio.
- DashBoard status display, audio meters, tone generators. GUI audio meters provide ready assessment of content presence and line-up.
- Audio-embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with 48 kHz video timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair.
- Low-power/high-density design with less than 18W per card
- Remote control/monitoring via Dashboard software or OGCP-9000 remote control panels
| SDI Cable Distance | 1694A: 394', 591', 1181' / 120 m, 180 m, 360 m (3G/HD/SD) |
| SDI Return Loss | >15 dB up to 1.485 GHz >10 dB up to 2.970 GHz |
| Alignment Jitter | 3G/HD/SD: <0.3/0.2/0.2 UI |
| Timing Jitter | 3G/HD/SD: <2.0/1.0/0.2 UI |
| SDI Formats Supported | SMPTE 259M, SMPTE 292M, SMPTE 424M |
| Audio Converters | 48 kHz sampling, 24-bit Auto-SRC bypass for Dolby inputs Analog audio I/O conforms to +24 dBu @ 0 dBFS |
| Analog Input Impedance | >10 kOhms |
| Reference Level | -20 dBFS |
| Nominal Level | 4 dBu |
| Input Clip Level | 24 dBu (0 dBFS) |
| Frequency Response | ±0.2 dB (20 Hz to 20 kHz) |
| SNR | 115 dB (A weighted) |
| THD + N | -96 dB (20 Hz to 10 kHz) |
| Crosstalk | -106 dB (20 Hz to 20 kHz) |
| Output Impedance | <50 Ohms |
| Max Output | +24 dBu (0 dBFS) |
- Limited 5-Year Warranty
