Description

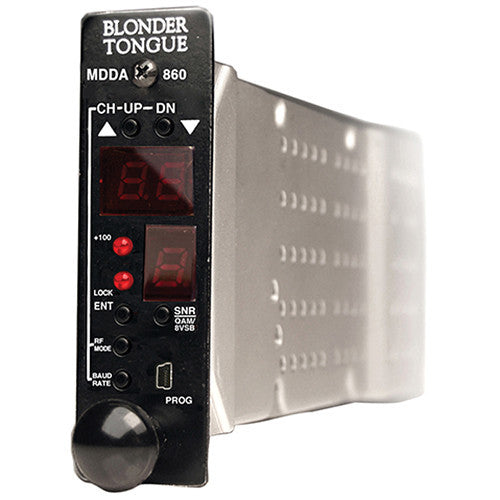

The MDDA-860 Micro ATSC/QAM to ASI Digital Demodulator and Transcoder by Blonder Tongue receives one input signal in ATSC 8VSB (digital off-air) or QAM (digital cable) format and delivers one output in ASI format. The unit features a front panel custom mini USB to RS232 interface connector for program control. The front panel provides up and down control channel selection and a two digit display to identify the program channel as well as a 1 digit RF channel display to indicate the frequency/channel plan.
- Input standards supported are digital off-air (8VSB) and digital cable (ITU-B QAM 64 and 256)
- Die-cast chassis offers protection against ingress or egress
- Demodulates & transcodes HDTV/SDTV digital signals to ASI
- Compact design allows for deployment of 12 units in 2RU
- On-site firmware updates available through front-panel
In the Box
Blonder Tongue MDDA-860 Micro ATSC/QAM to ASI Digital Demodulator and Transcoder
- Limited 1-Year Warranty
| Input | |
|---|---|
| Connector | "F" female |
| Standards | 8VSB: ATSC Digital Television Standard, A/53E QAM: ITU-T J.83 (64 and 256 QAM) |
| 8VSB Mode | Tuning Range: UHF (NTSC channels 14-78), VHF (NTSC channels 2-13) Symbol Rate: 10.762 Msymbols/sec Bandwidth: 6 MHz |
| QAM Mode | Tuning Range: CATV (NTSC channels 2-135) Symbol Rate: 5.3606 Msymbols/sec (QAM 256), 5.057 Msymbols/sec (QAM 64) - auto detect Bandwidth: 6 MHz |
| Single Channel Power Level | -32 to +45 dBmV |
| 8VSB Power Level | -20 to +30 dBmV |
| QAM Power Level | -20 to +20 dBmV |
| Return Loss | 12 dB |
| Impedance | 75 ? |
| Output | |
|---|---|
| Connectors | ASI: 1 x F (equipped with F-to-BNC adapter) |
| ASI | Standard: DVB-ASI; 50083-9 Data Bit Rate: 270 Mbps |
| Alarms/Monitoring/Control | |
|---|---|
| Front Panel Indicators | RF channel (2 digit LED display) Frequency/channel plan (1 digit LED display) +100 channel (red LED) SNR (2 & 1 digit LED displays) Lock LED (solid LED) No lock (flashing LED) RF mode (2 & 1 digit LED displays) Baud rate (2 & 1 digit LED displays) Firmware revision (2 digit LED display) Software revision (2 & 1 digit LED displays) Unit reset (2 & 1 digit LED displays) |
| Front Panel Control | CH UP/DN push-buttons (increment major or minor channel up/down) ENT push-button (enters or confirms selection) RF Mode push-button (adjusts RF frequency plans) Baud Rate push-button (adjusts baud rates) SNR push-button (measures input signal-to-noise ratio) QAM/8VSB push & hold button (toggles between QAM & 8VSB) RF mode & baud rate simultaneously (unit reset) PROG (custom mini USB-to-RS232 interface for control) |
| General | |
|---|---|
| Power | 110 VAC/60 Hz or 220 VAC/50 Hz |
| Power Dissipation | 7 W (per MDDA module) |
| Operating Temperature | 32 to 122�F (0 to 50�C) |
| Storage Temperature | -13 to 158�F (-25 to 70�C) |
| Operating Humidity | 0 to 95% RH @ 35�C max, non-condensing |
| Storage Humidity | 0 to 95% RH @ 35�C max, non-condensing |
| Dimensions (W x D x H) | 1.15 x 7.5 x 3.5" (2.9 x 19.1 x 8.9 cm) |
| Weight | 0.8 lb (360 g) |
