Description
- Combine up to 12 Single-Channel Sources
- Isolation and RFI Shielding
- Separate -20 dB Test Port
- 1RU Rackmountable Chassis

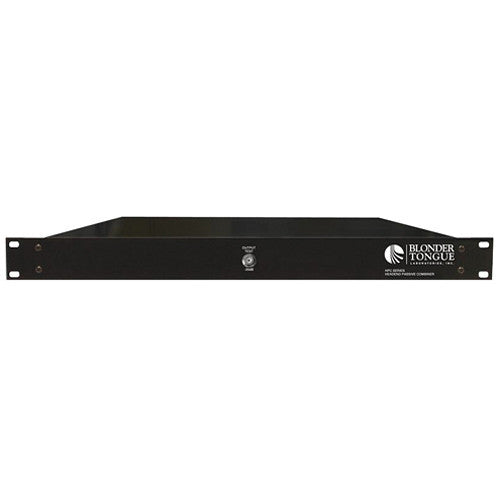

The 12-port Headend Passive Combiner from Blonder Tongue is designed for use in a headend to combine the outputs from up to 12 single channel devices such as modulators and processors. It supports a frequency range of 5 to 1000 MHz.
- Designed to provide high isolation, low net combing loss and featuring RFI shielding to minimize egress or ingress interference
- Front-panel, 20 dB test port on 75 ohm F type connector allows testing unit without service interruption
- 1RU rackmoutable chassis
In the Box
Blonder Tongue Headend Passive Combiner (12-Port)
- Limited 3-Year Warranty
| Performance | |
|---|---|
| Maximum Insertion Loss | 5 to 40 MHz: 14.3 dB 40 to 450 MHz: 14.3 dB 450 to 750 MHz: 15 dB 750 to 1000 MHz: 16.5 dB |
| Minimum Isolation | 5 to 40 MHz: 30 dB 40 to 450 MHz: 32 dB 450 to 750 MHz: 30 dB 750 to 1000 MHz: 28 dB |
| Test Port | 5 to 40 MHz: 20+ / -0.5 dB 40 to 450 MHz: 20+ / -0.5 dB 450 to 750 MHz: 20+ / -0.5 dB 750 to 1000 MHz: 20+ / -0.5 dB |
| Input Return Loss | 5 to 40 MHz: 20 dB 40 to 450 MHz: 20 dB 450 to 750 MHz: 20 dB 750 to 1000 MHz: 18 dB |
| Output Return Loss | 5 to 40 MHz: 20 dB 40 to 450 MHz: 20 dB 450 to 750 MHz: 18 dB 750 to 1000 MHz: 18 dB |
| Impedance | 75 ohm |
| General | |
|---|---|
| Connectors | Inputs: 12 x F type female Output: 1 x F type female Test Port: 1 x F type female |
| Rack Height | 1 RU |
| Dimensions | 19 x 8 x 1.8" (483 x 203 x 44 mm) |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 6.0 lb |
| Box Dimensions (LxWxH) | 23.622 x 12.047 x 4.095" |
