Description
- CATV Broadband RF Distribution
- Variable Gain and Slope Controls
- 47 to 860 Frequency Range
- 5 to 30 MHz Passive Return Path
- Aluminum Housing Aids Heat Dissipation
- Use Included Transformer or 24V AC Power

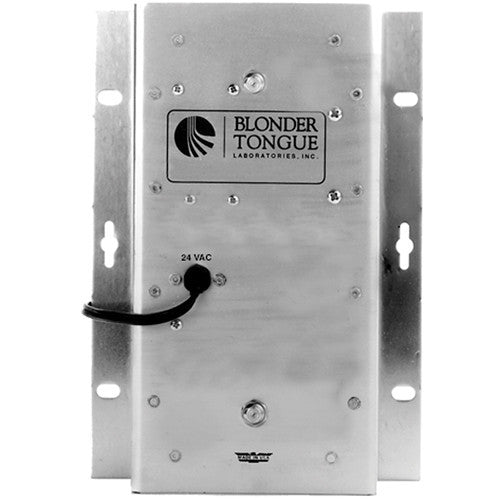

The ACA-30-86R Apartment Complex Amplifier from Blonder Tongue is an indoor broadband distribution amplifier designed to be used in RF distribution systems, such as those for apartment complexes, hospitals, schools, prisons, and hotels. This version features two-way communication, with a 47 to 860 MHz frequency range and a passive return path of 5 to 30 Mhz.
The amplifier is housed in an aluminum housing designed to provide efficient heat dissipation. An external transformer is included allowing it to power from 117V AC power. Alternatively, the unit can power directly from 24V AC.
- RF distribution of CATV signals over broadband spectrum
- Built-in variable gain and slope controls
- Push-pull hybrid module design
In the Box
Blonder Tongue ACA-30-86R Apartment Complex Amplifier
- Transformer
- Limited 1-Year Warranty
| RF Specification | |
|---|---|
| Frequency Range | Outbound: 47 to 860 MHz Passive Return Path: 5 to 30 MHz |
| Channel Loading | 129 |
| Gain | 31 dB / -.75 dB reverse |
| Noise Figure | 9.0 dB |
| Output Level | +34 / +44 dBmV |
| Gain Control Range | 15 dB |
| Slope Control Range | 10 dB |
| Composite Triple Beat | -56 dB |
| Cross Modulation | -58 dB |
| Composite Second Order | -58 dB |
| Hum Modulation | -65 dB |
| Return Loss | Input: 12 dB Output: 12 dB |
| General | |
|---|---|
| Power Requirements | Included Transformer: 117 VAC (�10%) at 60 Hz Device: 24 VAC |
| Power Consumption | 19 |
| Operating Temperature | -4 to 140�F / -20 to 60�C |
| Dimensions | 7.5 x 5.6 x 2" / 191 x 143 x 51 |
| Weight | 3.1 lb / 1.4 kg |
| Packaging Info | |
|---|---|
| Package Weight | 3.9 lb |
| Box Dimensions (LxWxH) | 12.3 x 6.6 x 3.2" |
