Description
- Use Inexpensive HDMI Monitors for SDI
- Overcome the Distance Limitation of HDMI
- Supports up to 1080p60 Resolution
- Passes up to 8-Channels Embedded Audio
- Reclocking for Increased Cable Runs
- Supports Legacy SD-SDI Formats Too

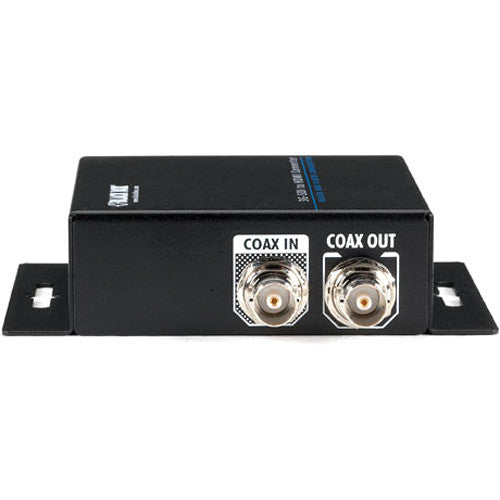

- Loop-Through Output for SDI
- DIP Switch Configurable
- Wallmountable Design

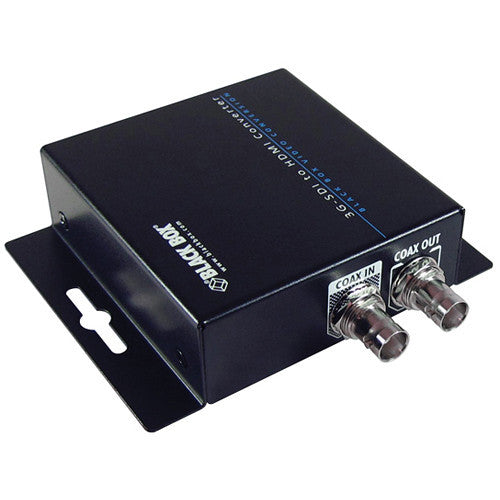

With the 3G-SDI/HD-SDI to HDMI Converter from Black Box it is possible to use a consumer grade HDMI display to view video from and SD-, HD-, or 3G-SDI source. The converter supports most SDI formats up to 1080p, and will output an HDMI signal in a format that corresponds to the input resolution and frame rate. Among countless possible uses, it can be used as away to inexpensive monitor SDI video in a broadcast environment, to connect AV displays such as projectors and video walls to a live switcher, or combine it with an HDMI to SDI converter (such as VSC-HDMI-SDI) in order to overcome the normal distance limitation of standard HDMI cable.
The converter passes up to eight-channels of SDI-embedded audio, including 7.1-channel and 5.1-channel formats and Dolby TrueHD audio. It features a loop-through output for SDI so that you can also send a signal to a downstream device, such as a local monitor, without requiring a separate distribution amplifier.
- Cable equalization and reclocking enables cables runs of up to 300' for 3G-SDI, 500 for HD-SDI, and 1000' for SD-SDI (depending on cable quality and the presence of sources of RF interference)
- Provides digitally-only SDI-to-HDMI conversion, designed to ensure no loss in the conversion of either the audio or video signal
- DIP switches audio embedding settings and configuration
- Wallmountable for space-saving installation
| Connectivity | |
|---|---|
| Input | 1 x 3G/HD/SD-SDI on BNC connector |
| Output | 1 x HDMI 1 x 3G/HD/SD-SDI loop-out on BNC connector |
| Impedance | SDI I/O: 75 ohm |
| Supported Standards | SDI: 3G-SDI (SMTPE 424M), HD-SDI (SMPTE 292M and 296M), SD-SDI SMPTE 259M |
| Bandwidth | SDI: 270 Mb/s; 1.4835 Gb/s, 1.485, 2.967, 2.97 Gb/s |
| Supported Resolutions | 3G-SDI: 1080p (4:2:2): 50, 59.94, and 60 Hz HD-SDI: 1080p: 23.98, 24, 25, 29.97, and 30 Hz 1080i: 50, 59.94, and 60 Hz 720p: 50, 59.94, and 60 Hz SD-SDI: NTSC (59.94 Hz), PAL (50 Hz) |
| General | |
|---|---|
| Indicators | 1 x Power LED 1 x Activity LED |
| Controls | 2 x External DIP switches for audio formatting and configuration |
| Power Requirements | Device: 5 VDC, 4 amps Power Supply: 100 to 240 VAC, 50 to 60 Hz; 0.8 A |
| Power Consumption | Maximum: 3 W |
| Dimensions (H x W x D) | 1.2 x 3.1 x 3.3" / 0.5 x 7.6 x 8.4 cm |
| Weight | 3.7 lb / 1.7 kg |
| Packaging Info | |
|---|---|
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 8.032 x 5.669 x 2.992" |
- Power Supply
- Limited 1-Year Warranty
