Description
AVPro Edge AC-MX-44X Overview
Switch and route up to four HDMI sources originating from Blu-ray players, game consoles, satellite systems, and more with this 8K 4x4 HDMI Matrix Switcher from AVPro Edge. This versatile matrix switcher supports HDMI 2.1, HDCP 2.3, and up to 8K60 with an ultrawide bandwidth of 48 Gb/s. In addition to having full HDR support and dual audio de-embedding, the switcher features four HDMI inputs and four HDMI outputs as well as four analog and four digital audio outputs with integrated scaling.
Advanced EDID management and IR, RS-232, and LAN control options are among the many features available, with a built-in test pattern generator that, together with the troubleshooting features in the GUI, serves to aid with wire verification, switcher configuration settings, and source viability. It also supports 5K ultrawide 21:9 aspect ratio.
Full 8K Ultra HD, Uncompressed 48 Gb/s Bandwidth
The unit is fully compatible with all specified ITU 8K timings and bit rates. Its capabilities are future-forward through the complete evolution of the 8K format.
5K Ultrawide 21:9 Aspect Ratio
Synergistically supports 5K ultrawide 21:9 aspect ratio monitors and collaboration-configured displays.
HDMI 2.1 Capabilities with 4K/144 Hz Support
Features essential for a next-level, high-quality gaming experience include ALLM, HFR, QFT, QMS, and VRR. Match next-gen display performance with 4K/144 Hz extended frame rate support for ultra-sharp visuals with impressively smooth motion, enhanced gaming performance, and general computing with reduced motion blur and increased responsiveness.
Integrated User and End-user Interface
The integrated user interface simplifies installation and configuration for installers and IT personnel. A custom, easy-to-use, limited-access interface can be created for end-users (hospitality and office employees or homeowners).
Valuable Tools to Fine-Tune Projects
The unit supports a wide range of essential and valuable tools, including audio delay, audio de-embedding, downscaling, EDID management, and test pattern generation.

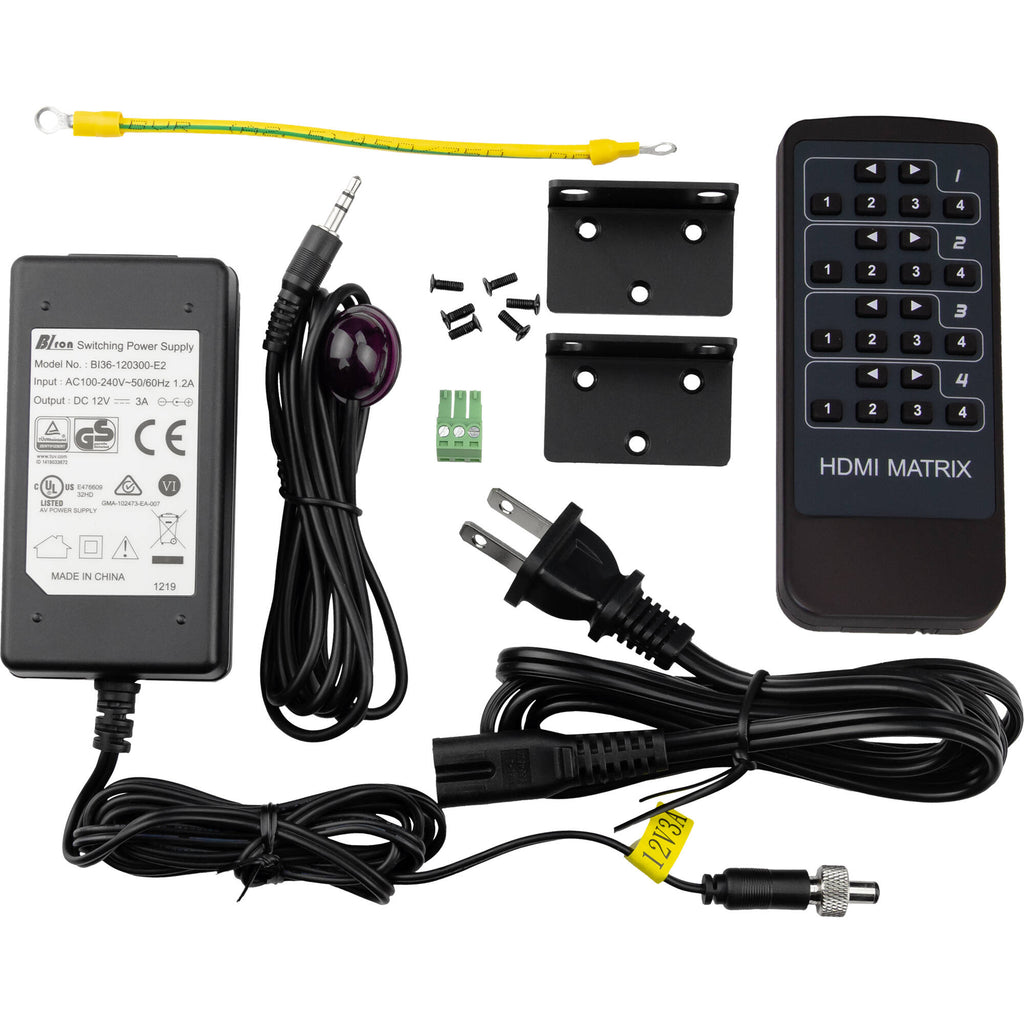

Items Included
- AVPro Edge 8K 4x4 HDMI Matrix Switcher
- 12V, 5A Power Supply
- IR Remote Control
- IR Extension Cable
- 2 x Mounting Bracket & Screw (Preinstalled)
- 4 x Rubber Foot
- 4 x Screw
- 4 x 5-Pin 2-Channel Audio Extraction Cable
- 3-Pin Terminal Block
- Grounding Cable
- Limited 10-Year Manufacturer Warranty
Additional Resources
No additional resources available
AVPro Edge AC-MX-44X Specs
Processing
| Switching Type |
IR Remote, Pushbutton, Software
|
| Latency |
630 ms
|
| Processing Resolution |
8K at 60
|
| Color Processing |
10-Bit, 12-Bit, 16-Bit 4:4:4 YUV
10-Bit, 12-Bit, 16-Bit 4:2:2 YUV 10-Bit, 12-Bit, 16-Bit 4:2:0 YUV 10-Bit, 12-Bit, 16-Bit 4:4:4 RGB 10-Bit, 12-Bit, 16-Bit 4:2:2 RGB 10-Bit, 12-Bit, 16-Bit 4:2:0 RGB |
| Audio Processing |
192 kHz / 24-Bit
|
Input
| Video Inputs |
4x HDMI (2.1) Female
|
| Input Video Format |
HDMI (10/12/16-Bit 4:4:4/4:2:2/4:2:0)
8K up to 60 fps |
| Input Audio Format |
LPCM (Linear Pulse-Code Modulation): 192 kHz / 24-Bit
|
| Embedded Audio Input |
HDMI: 8-Channel (per Input)
|
Output
| Video Outputs |
4x HDMI (2.1) Female
|
| Output Video Format |
HDMI (10/12/16-Bit 4:4:4/4:2:2/4:2:0)
8K up to 60 fps |
| Audio Outputs |
4x Block 5-Pin Stereo
4x TOSLINK 8-Channel |
| Output Audio Format |
LPCM (Linear Pulse-Code Modulation): 192 kHz / 24-Bit
LPCM (Linear Pulse-Code Modulation): 96 kHz / 24-Bit |
| Embedded Audio Output |
HDMI: 8-Channel
|
Connectivity
| Other I/O |
1x RJ45 LAN
1x Block 3-Pin RS-232 1x 1/8" / 3.5 mm IR 1x USB-C |
| Digital Audio Decoding |
DTS-HD Master Audio, Dolby Digital Plus, Dolby Digital / AC3, Dolby Atmos, DTS, DTS:X, DTS-HD High Resolution, DTS-ES, LPCM, Dolby TrueHD, DTS Digital Surround
|
| HDCP Support |
Yes, Version 2.3
|
| HDR Support |
Yes, HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
|
| DTS Compatibility |
DTS, DTS Digital Surround, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X
|
| Dolby Compatibility |
Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
|
Hardware
| Wireless |
No
|
Power
| Power I/O |
1x Barrel (12 VDC at 5 A) Input
|
| Power Consumption |
40 W
|
General
| Operating Conditions |
23 to 125°F / -5 to 51°C at 5 to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Certifications |
CE, FCC
|
| Rack Form Factor |
1 U
|
| Dimensions |
22.25 x 14.75 x 4.93" / 56.52 x 37.47 x 12.52 cm
|
| Weight |
6.65 lb / 3.02 kg
|
