Description
- Adjustable
- Low Power Consumption 150MA @12VDC
- PAL & NTSC
- DC Powered
- Rugged Construction
- 0.8 Second Delay

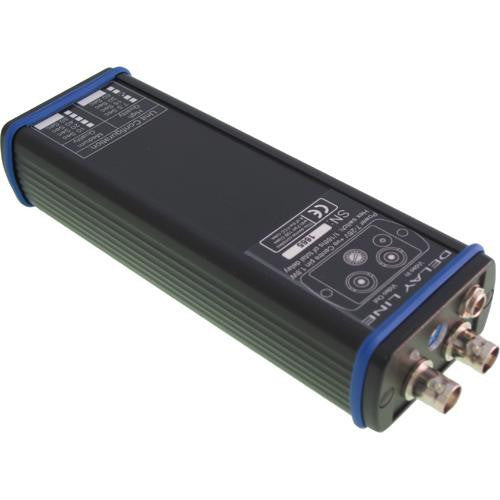

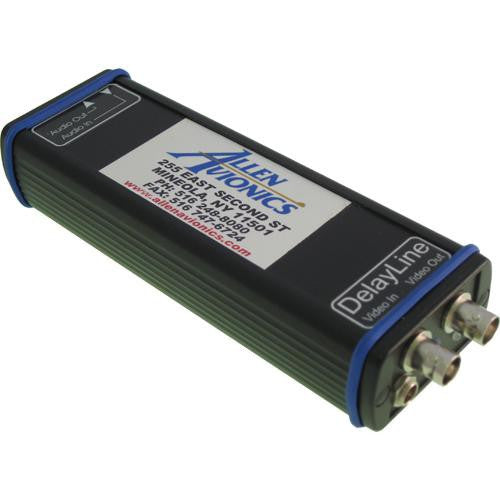

The Allen Avionics DLS-5379 is a simple and cost-effective Video Delay Line for applications requiring long audio or video Delays. The DelaySystem can be used in any applications where a constantly rewriting video storage is required. Example applications include any Video storing/delay requirement, synchronizing video and audio feeds in a studio, at sporting events and for the action replay of any live video feed.
- Operation
- DelaySystem Video delay line operates by utilizing large banks of memory to provide a video delay with almost no loss in quality.
- Adjustment
- For flexibility, the amount of delay is user adjustable in 1/16 steps.
- System
- The video delay system consists of a small DC powered unit that is very simple to install and operate.
- Operating Temperature
- 14 to 131°F
-10 to +55°C
In the Box
Allen Avionics DLS-5379 Delay System
- Delay
- DC Power Lead
- User Guide
- 1 Year Warranty
| Input | Composite Video , @ 75 ohms, PAL and NTSC, on a BNC connector |
| Output | Composite Video , @ 75 ohms, PAL and NTSC, on a BNC connector |
| Pulse Distortion | Not Specified by Manufacturer |
| Delay Range | 0 to 0.8 Second 16 Increments of 50 Milliseconds |
| Control | 16-Way Hex Switch |
| Power Source | 7-32VDC from Separate Power Source |
| Dimensions (WxDxH) | 1.26 x 2.28 x 6.6" 32 x 58 x 168mm |
| Weight | 7.9 oz 225g |
| Packaging Info | |
|---|---|
| Package Weight | 2.6 lb |
| Box Dimensions (LxWxH) | 12.2 x 10.3 x 9.2" |
