Description
Product Overview

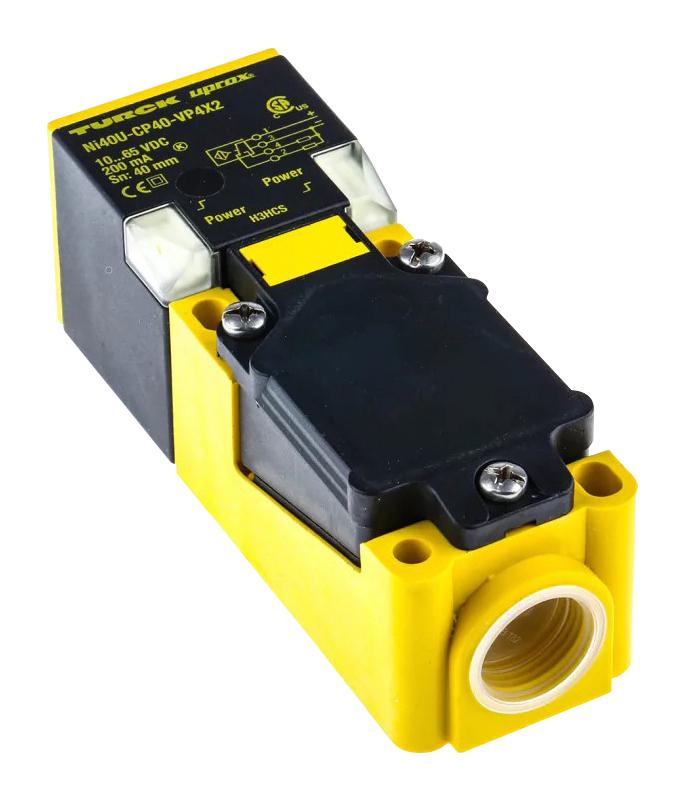

NI40U-CP40-VP4X2 is an inductive sensor with an extended switching distance. It is designed for wear-free and contactless detection of metal objects. uprox Factor 1 sensor has significant advantages due to its patented ferrite-coreless multi-coil system. It detects all metals at the same large switching distance and is resistant to magnetic fields.
- Rectangular design, height 40mm
- Plastic, PBT-GF30-V0, black housing material
- 10 to 65VDC operating voltage, IP68 protection class
- 4-wire, complementary contact, PNP output function
- Non-flush mounting condition, ? 2% of full scale repeat accuracy
- ? 200mA DC rated operational current, 15mA no load current
- ? 0.1mA residual current, ? 0.5kV isolation test voltage
- 4-wire, complementary contact, PNP output function, terminal chamber electrical connection
- 0.25KHz switching frequency, dimension is 114 x 40 x 40mm
- Operating ambient temperature range from -30°C to +85°C
Product details
Other details
| Brand | TURCK |
| Part Number | NI40U-CP40-VP4X2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
