| ₹ 15235.4 includes GST and import duties. | |
| B2B customers can avail ₹ 2323.4 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

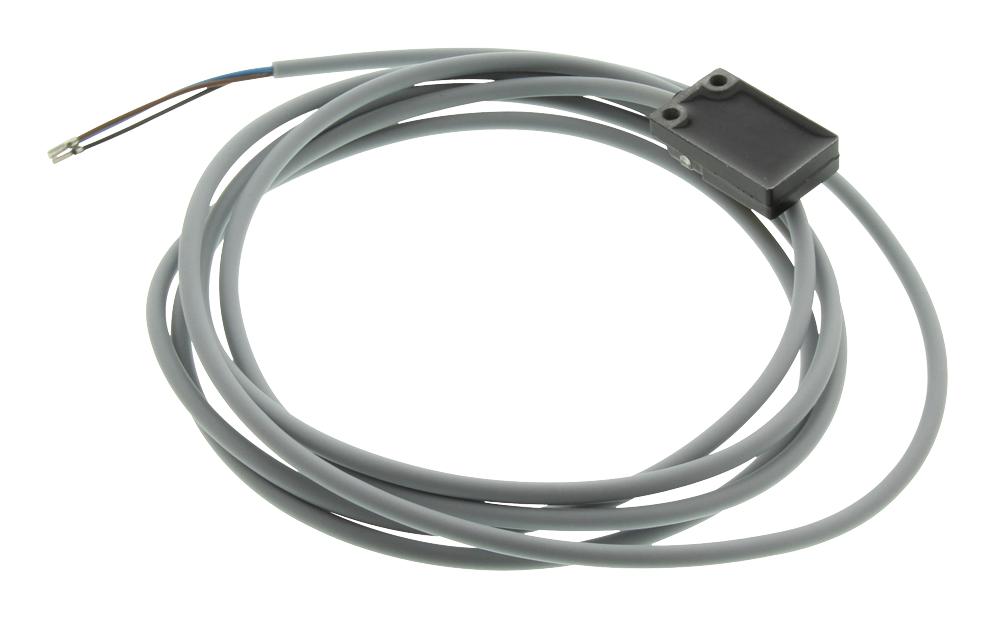

BI5U-Q08-AP6X2 is an inductive sensor. It is designed for wear-free and contactless detection of metal objects. uprox factor 1 sensor has significant advantages due to its patented ferrite coreless multi-coil system. It detects all metals at the same large switching distance and is resistant to magnetic fields.
- 5mm rated switching distance, switching state is LED, yellow
- Flush mounting condition, lower-on indication is LED, green
- Repeat accuracy is ? 2% of full scale, IP68 protection class
- 3 to 15% hysteresis, metal, zamak, nickel plated housing material
- Operating voltage range from 10 to 30VDC, cable electrical connection
- DC rated operational current is 200mA, 15mA no-load current
- Residual current is ? 0.1mA, isolation test voltage is ? 0.5kV
- 3-wire, NO contact, PNP output function
- 0.25KHz switching frequency, rectangular, Q08 design
- Operating ambient temperature range from -30°C to +85°C, dimension is 32 x 20 x 8mm (L x W x H)
Product details
Other details
| Brand | TURCK |
| Part Number | BI5U-Q08-AP6X2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 14930.69 |
| 3-5 | ₹ 14778.34 |
| 5-10 | ₹ 14473.63 |
| 10+ | ₹ 14168.92 |
Bulk discount will be automatically applied during checkout based on quantity.
