Description
Product Overview

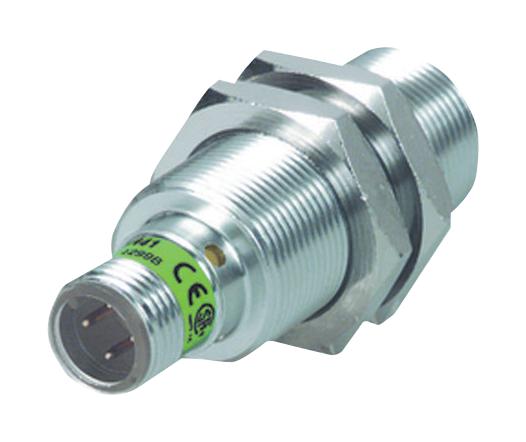

BI10-M30-AP6X-H1141 is an inductive sensor. It is used to detect metal objects contactless and wear-free. It uses a high-frequency electromagnetic AC field that interacts with the target. Inductive sensor generates this field via an RLC circuit with a ferrite coil.
- 10mm rated switching distance, flush mounting conditions
- Repeat accuracy is ? 2% of full scale, temperature drift is ? ±10%
- Hysteresis is 3 to 15%, operating voltage range from 10 to 30VDC
- Residual ripple is ? 10% Uss, DC rated operational current is ? 200mA
- No-load current is 15mA, residual current is ? 0.1mA
- Isolation test voltage is ? 0.5kV, output function is 3-wire, NO contact, PNP
- 0.5KHz switching frequency, connector, M12 × 1
- Threaded barrel, M30 x 1.5 design
- Metal, CuZn, chrome-plated housing, IP67 protection class
- Operating ambient temperature range from -25°C to -70°C
Product details
Other details
| Brand | TURCK |
| Part Number | BI10-M30-AP6X-H1141 |
| Quantity | Each |
| Technical Data Sheet EN |  |
