Description
Product Overview

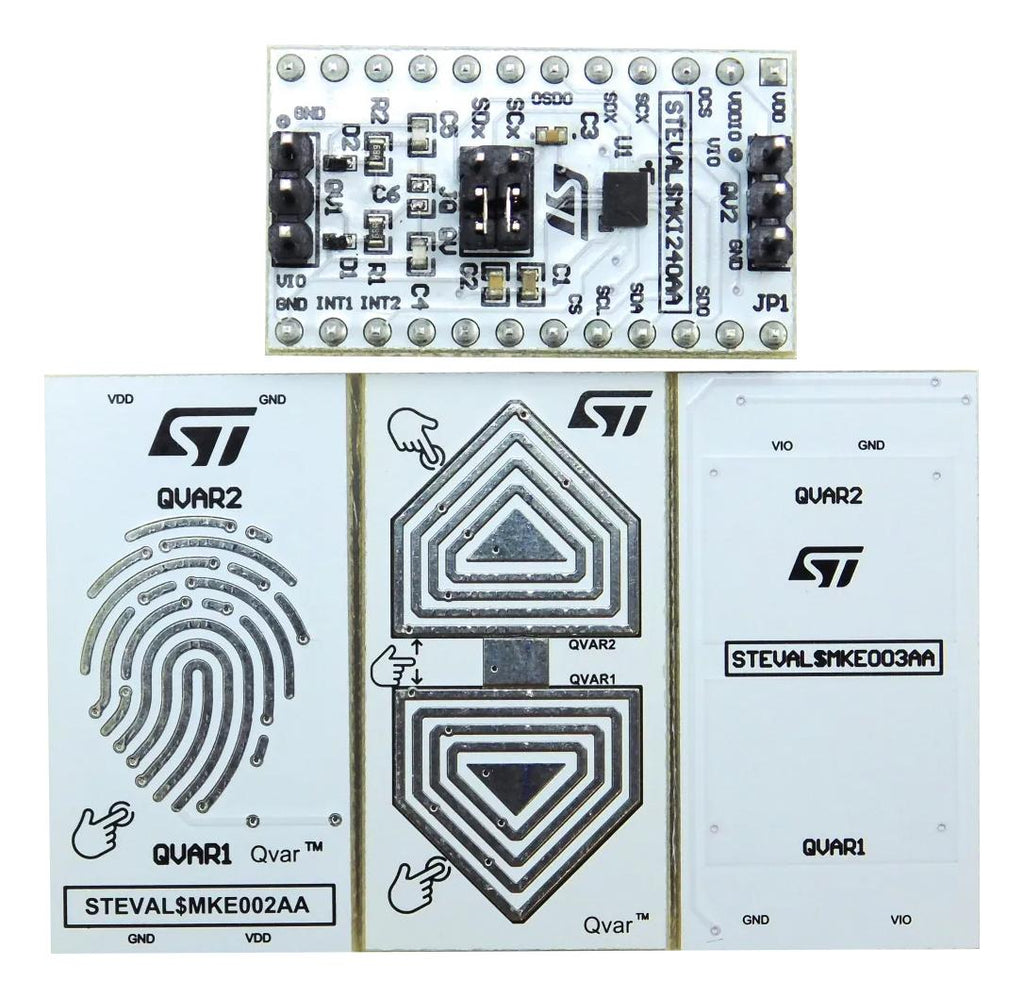

STEVAL-MKI240KA is a LSM6DSV32X adapter kit for a standard DIL24 socket with Qvar functionalities. The STEVAL-MKI240KA evaluation kit is based on the LSM6DSV32X inertial module with a Qvar electrostatic sensor and three different electrodes (swipe finger and generic) to make it compatible with the STEVAL-MKI109V3. The kit provides the complete LSM6DSV32X pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line. The STEVAL-MKE00xA can be plugged into the STEVAL-MKI240KA board. This adapter is supported by the STEVAL-MKI109V3 mother board, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the graphical user interfaces (like Unico-GUI or MEMS Studio), or dedicated software routines for customized applications. It is also possible to plug the board into X-NUCLEO expansion boards like XNUCLEO-IKS4A1.
- User friendly LSM6DSV32X board
- Complete LSM6DSV32X pinout for a standard DIL24 socket
- Fully compatible with the STEVAL-MKI109V3 motherboard
- Qvar electrodes
Product details
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STEVAL-MKI240KA |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3925.4 |
| 3-5 | ₹ 3885.34 |
| 5-10 | ₹ 3805.23 |
| 10+ | ₹ 3725.12 |
Bulk discount will be automatically applied during checkout based on quantity.
