Product Overview

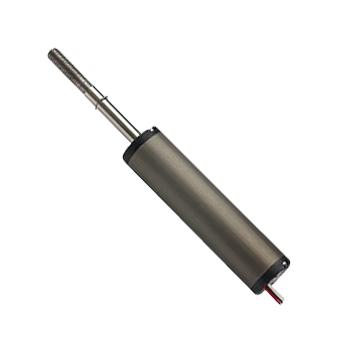

- 600 series linear position sensor
- Resistance tolerance is ±20%, power rating at 70°C is 0.25watt per inch, derated to 0watts at 125°C
- Output smoothness is 0.1%, insulation resistance at 500VDC is 1000Megohms
- Infinite resolution, dielectric strength is 500VRMS
- Temperature range from -55° to +125°C
- Mechanical travel is elect travel + 0.1in. minimum
- Actuation force is 2oz maximum, repeatability is within 0.0005inch
- Life is 10 x 10^6cycles
- 3ohm resistance, 0.25±% linearity
- 76mm electrical travel
Product details
Technical Specifications
Sensor Housing
Cylindrical
Operating Magnetic Force Min
-
Other details
| Brand |
SENSATA / BEI SENSORS |
| Part Number |
603R3KL.25 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
