Description
Product Overview

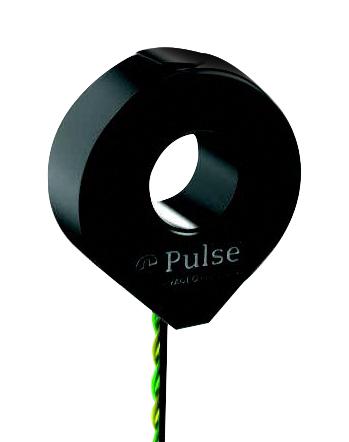

RC03-600-0250-S is a RC03-SSS-LLL-0 series shielded Rogowski current sensor.
- Robust design, wide dynamic range, high bandwidth
- No nonlinear effects (as in conventional current transformers by the iron core)
- Can be used without load (in contrast to the current transformer), low temperature dependency
- 600mV/kA (50Hz)/720mV/kA (60Hz) sensitivity (25°C), ±1% tolerance (50Hz/60Hz, 25°C)
- 70KHz typical resonance frequency (25°C), 3ppm/K typical temperature coefficient (25°C)
- Operating temperature range from -20°C to +80°C
Product details
Other details
| Brand | PULSE ELECTRONICS |
| Part Number | RC03-600-0250-S |
| Quantity | Each |
| Technical Data Sheet EN |  |
