Description
Product Overview

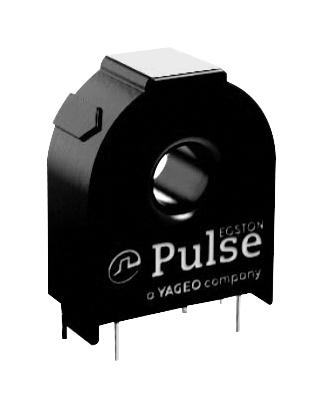

RC01-200 is a RC01 -SSS-0 series Rogowski current sensor.
- Dynamic range from 1 to 2500Amps
- Meets IEC 61869-10 Accuracy Class 1
- Meets ANSI C12.20 accuracy class 1.0
- Phase error of <0.03 degree at 50Hz / 60Hz, bandwidth up to 50KHz
- Immune to external AC magnetic ?eld, immune to DC current & magnetic ?elds
- 200mV/kA (50Hz)/240mV/kA (60Hz) sensitivity (25°C), ±1% tolerance (50Hz/60Hz, 25°C)
- 200KHz typical resonance (25°C), 25ppm/K typical temperature coefficient (25°C)
- Operating temperature range from -20°C to +80°C
- Low temperature coefficient
Product details
Other details
| Brand | PULSE ELECTRONICS |
| Part Number | RC01-200 |
| Quantity | Each |
| Technical Data Sheet EN |  |
