Description
Product Overview

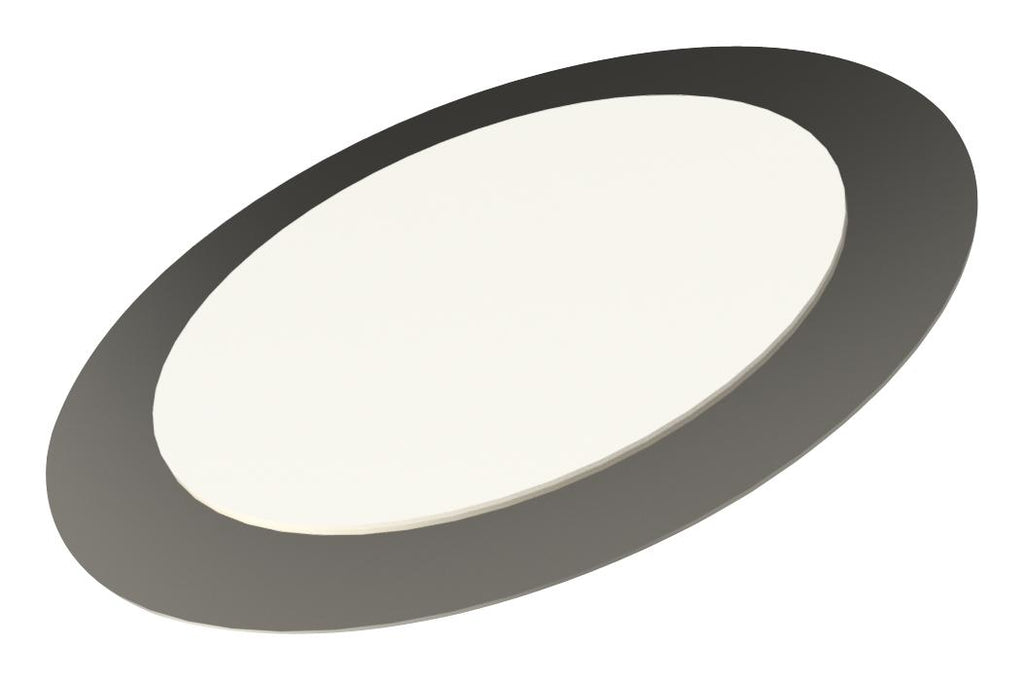

ABLF2040A is a piezoelectric bender.
- Round shape
- Alloy plate material
- 4KHz resonant frequency
- 30000pF ±30% capacitance at 120Hz
- 30Vp-p max input voltage
- 500 ohm maximum impedance
- Standard temp grade
- 0.5KHz tolerance, 30% tolerance
- Operating temperature range from 0.00°C to 70.00°C
- Dimension is 0.21 x 20 x 20mm (H x W x L)
Warnings
Do not apply a DC current to the product, otherwise, silver migration may occur, which will lower the insulation resistance and cause the product to stop functioning.
Notes
When operating the product outdoors, protect it from moisture to ensure normal operation.
Product details
Other details
| Brand | PUI AUDIO |
| Part Number | ABLF2040A |
| Quantity | Each |
| Technical Data Sheet EN |  |
