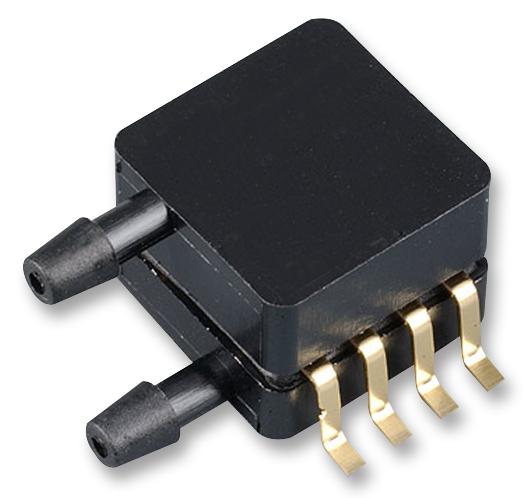

NXP MPXV2202DPT1 Pressure Sensor, Differential, 0 kPa, 200 kPa, 1 V, 16 V, SOP

MPXV2202DPT1 is a MPX2202 series 200kPa on-chip temperature compensated silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single monolithic silicon diaphragm with a strain gauge and a thin-film resistor network integrated into the chip. The chip is laser-trimmed for precise span and offset calibration and temperature compensation. This is designed for use in applications such as pump/motor controllers, robotics, level indicators, medical diagnostics, pressure switching, barometers, altimeters, etc. Application examples include pump/motor controllers, robotics, level indicators, medical diagnostics, pressure switching, barometers, and altimeters.

• Ratiometric to supply voltage
• Temperature compensated over range from 0 to +85°C
• Pressure range from 0 to 200kPa (differential pressure range, VS = 10VDC, TA = 25°C)
• Supply voltage is 10VDC typical (VS = 10VDC, TA = 25°C)
• Supply current is 6.0mAdc (VS = 10VDC, TA = 25°C)
• Full scale span range from 38.5 to 41.5mV (VS = 10VDC, TA = 25°C)
• Sensitivity is 0.2mV/kPa typical (VS = 10VDC, TA = 25°C)
• Input impedance range from 1000 to 2500 ohm (VS = 10VDC, TA = 25°C)
• Output impedance range from 1400 to 3000 ohm (VS = 10VDC, TA = 25°C)
• Operating temperature range from -40 to 125°C
