Description
Product Overview

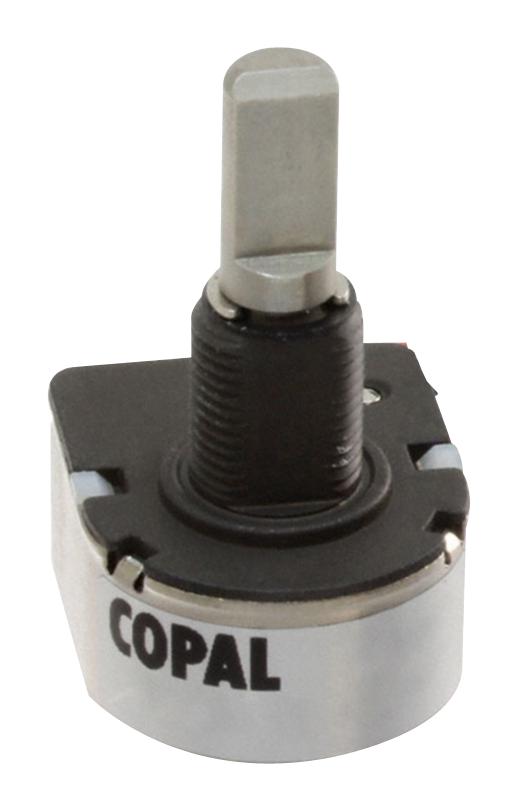

RMS20-256-201-1 is a manual setting type magnetic encoder.
- Lower consumption of electric power (15mA maximum) due to magnetic method
- Long life for 10^5 times continuous run due to contactless and magnetic method
- Square wave output (with amp.), smooth rotation for setting
- Cable wire output connection
- 256 (P/R) resolution
- 5VDC ±5% input voltage, IP40 protection grade
- 15mA maximum (no load) input current
- 5KHz maximum frequency response
- 1mA maximum output sink current
- Operating temperature range from -10°C to 60°C
Product details
Other details
| Brand | NIDEC COMPONENTS |
| Part Number | RMS20-256-201-1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
