Description
Product Overview

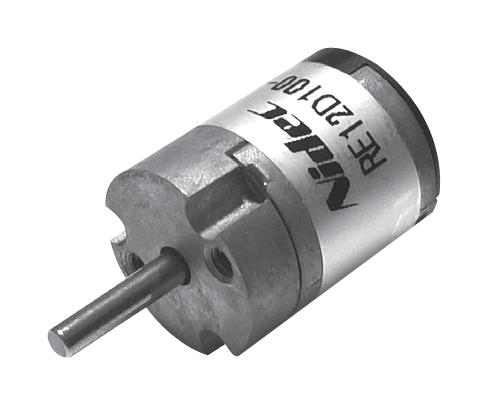

RE12D100-201-1 is an optical encoder.
- ?12mm, 2 phases square wave
- Low torque, low inertia, cost effective
- 100 (P/R) resolution, cable wire output connection
- 5VDC ±5 % input voltage
- 10KHz maximum frequency response
- 80mA maximum output sink current
- IP40 protection grade
- 0 to 50°C operating temperature range
- 50mA maximum input current
Product details
Other details
| Brand | NIDEC COMPONENTS |
| Part Number | RE12D100-201-1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
