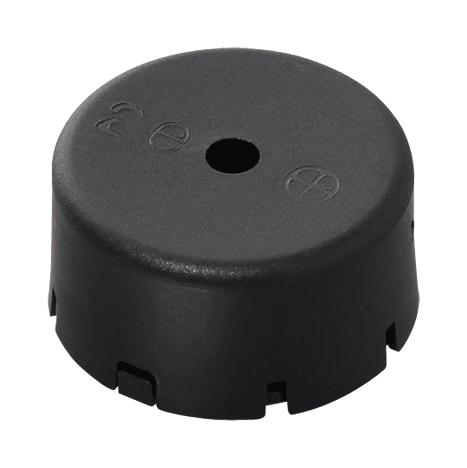

PKM17EPP-2002-B0 is a piezo electric sounder. It is an externally driven piezoelectric sounder is used in digital watches, electronic calculators, telephones and other equipment. This is driven by a signal (ex.: 2048Hz or 4096Hz) from an LSI and provide melodious sound.
- Low power consumption, no noise and high reliability
- Not built-in oscillation circuits, �17.0�9.8mm size
- 2.0KHz frequency, 79dB typical sound pressure level
- Measure condition of sound pressure level [3.0Vo-p, 2.0KHz, square wave, 10cm]
- 34nF capacitance, ±30% capacitance tolerance, 120Hz measurement condition of capacitance
- 25.0Vo-p max. [with polarity] maximum input voltage
- Lead shape, pin type lead shape, 3.5mm lead length, external drive type
- Operating temperature range from -20 to 70°C
Product details
| Transducer Function:
Buzzer
|
| Tones:
-
|
| Supply Voltage Min:
-
|
| Supply Voltage Max:
25V
|
| Operating Current Max:
-
|
| Sound Level SPL:
79dB
|
| Sound Level Distance:
100mm
|
| Resonant Frequency:
2kHz
|
| Product Range:
-
|
Other details
| Brand |
MURATA |
| Part Number |
PKM17EPP-2002-B0 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
