Description

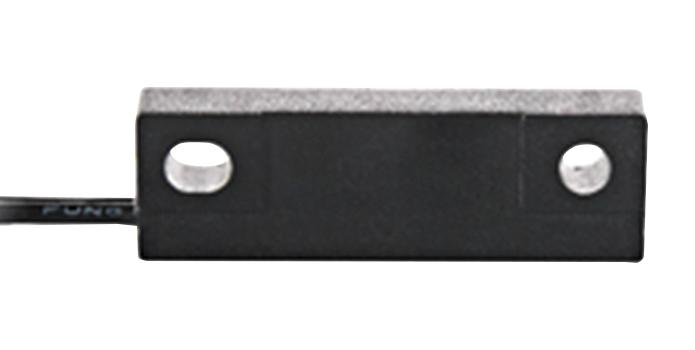

MP-MS-332-3-1-0500 is a reed sensor switch. A magnetic reed sensor contains a magnetic reed switch within an enclosed housing. The housing ensures better mechanical protection and facilitates assembly. A reed sensor is a versatile switching solution, suitable for a wide variety of applications. Typical applications include position control, non touch switching, flow detection, level sensing, speed measuring (RPM). This reed sensor is easy to mount and IP67 rated.
- Easy mounting and fixing, fitted with wire leads
- Compact housing, adjustable switching point
- UL approval, replaces various competitors types
- Various sensitivity ranges available
- 10W/V maximum contact rating, max switching voltage is 200VDC, 140VAC
- 1A maximum switching current, 240VDC minimum breakdown voltage
- 200mohm maximum total resistance (initial), switching frequency is 500Hz maximum (25°C)
- Resonant frequency is 4000Hz typical (25°C), 1 = 10 to 15 AT range
- ABS housing, UL 1007/1569, AWG 24, 4mm stripped and tinned cable, epoxy potting compound
- Operating temperature range from -20 to +85°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP-MS-332-3-1-0500 |
| Quantity | Each |
| Technical Data Sheet EN |  |
