Description
Product Overview

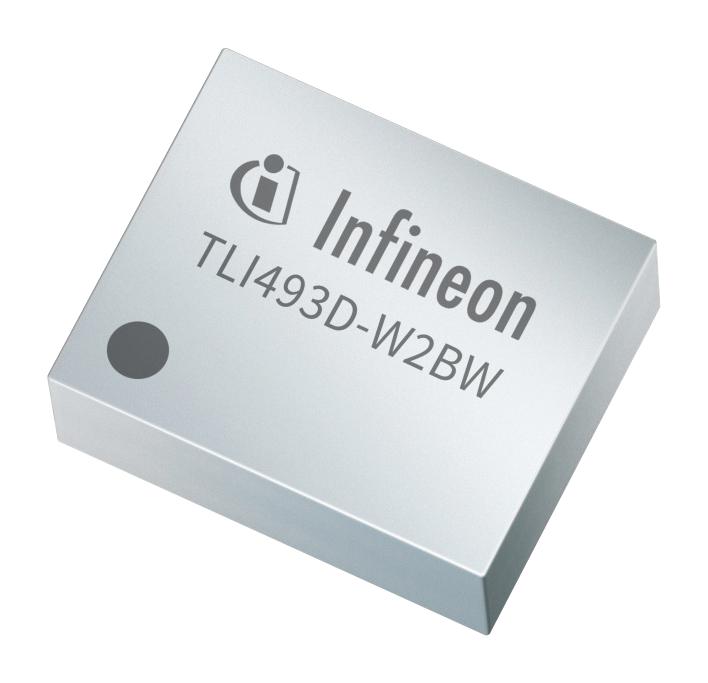

TLI493DW2BWA3XTMA1 is a low-power 3D Hall sensor with an I²C interface and Wake-Up function. The potential Applications include multi-function knobs, joysticks, and gimbals, white good applications (washing, dryer machines), robotics position sensing, mobile camera lens position sensing for focus and zoom, and angle measurement in end of shaft and out of shaft configurations.
- 3D (X, Y, Z) magnetic flux density sensing up to ±160mT
- Programmable sensitivity up to typ. 30.8 LSB12/mT
- Power down mode with 7nA (typ.) power consumption
- 12bit data resolution for each measurement direction plus 10-bit temperature sensor
- Variable update frequencies and power modes (configurable during operation)
- Triggering by external microcontroller possible via I2C protocol
- X-Y angular measurement mode
- Interrupt signal to indicate a valid measurement to the microcontroller
- Component reduction due to 3D magnetic measurement principle
- SG-WFWLB-5-2 package, junction temperature range from -40 to 125°C
Product details
Other details
| Brand | INFINEON |
| Part Number | TLI493DW2BWA3XTMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
