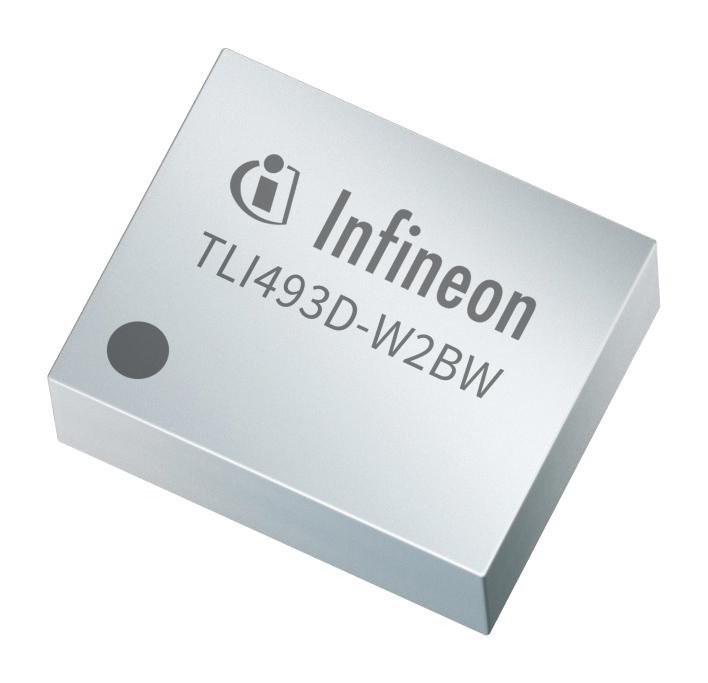

INFINEON TLI493DW2BWA2XTMA1 Hall Effect Sensor, WFWLB, 5 Pins, 2.8 V, 3.5 V, -40 °C TLI493D-W2BW A2, SP005409968

TLI493DW2BWA2XTMA1 is a low-power 3D hall sensor with an I²C interface and wake-up function. This three-dimensional hall effect sensor can be configured by the microcontroller. The measurement data is provided in digital format to the microcontroller. The microcontroller is the host and the sensor is the server. This sensor also provides the functionality to wake up a sleeping system. It is used in applications such as multi-function knobs, joysticks, and gimbals, white good applications (washing, dryer machines), robotics position sensing, mobile camera lens position sensing for focus and zoom, angle measurement in end-of-shaft and out-of-shaft configurations.

• 12bit data resolution for each measurement direction plus 10-bit temperature sensor
• Variable update frequencies and power modes (configurable during operation)
• Triggering by external microcontroller possible via I²C protocol
• X-Y angular measurement mode, power down mode with 7nA typical power consumption
• Supply voltage range from 2.8V to 3.5V, component reduction due to 3D magnetic measurement principle
• Small sensor form factor allows for very compact system designs
• Wide application range addressable due to high flexibility
• Very low system power consumption due to wake-up mode resulting in extended battery runtime
• Operating temperature range from -40°C to 125°C
• SG-WFWLB-5-2 package
