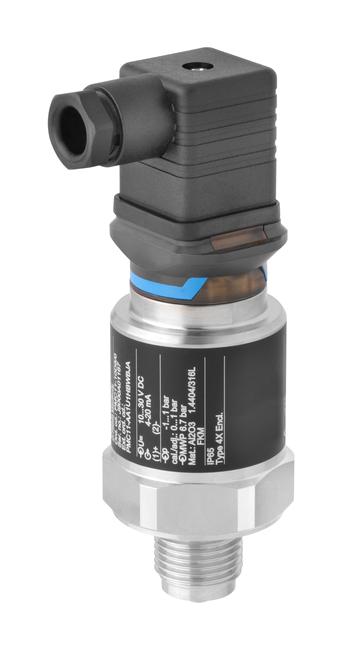

ENDRESS+HAUSER PMC11-AA2L1PBWTJA Pressure Sensor, 10bar / 1MPa / 150psi, Gauge, 0 to 10V, G1/4, 316L Stainless Steel

PMC11-AA2L1PBWTJA is a Cerabar PMC11 series, pressure transducer for the measurement of absolute and gauge pressure in gases, vapours, liquids and dust. The Cerabar can be used internationally thanks to a wide range of approvals and process connections. It is the most price-attractive compact pressure transmitter in its segment. It features a capacitive, oil-free ceramic sensor. The PMC11 is designed for standard applications in the process industry and to withstand the conditions with the use of high-quality materials like 316L and 99.9% Al?O?. It features a capacitive oil-free measuring cell with high abrasion resistance and 100% test coverage during production guaranteeing long process availability.

• Non-hazardous area approval, 0 to 10V output voltage
• Plug M12, IP65 NEMA Type 4X enclosure (electrical connection)
• 10bar/1MPa/150psi gauge, overload: 40bar/4MPa/600psi (sensor range)
• Thread ISO228 G1/4 EN837, 316L (process connection), FKM seal
• High reproducibility and long-term stability, reference accuracy up to 0.3%
• Housing and process isolating diaphragm made of 316L
• Process pressure range from 400mbar to +40bar (6 to 600psi)
• 0.2% of URL/year long term stability
• Cost effective pressure transducer, capacitive sensor with ceramics measuring diaphragm
• Ambient temperature range from -40°C to +70°C
