Description
Product Overview

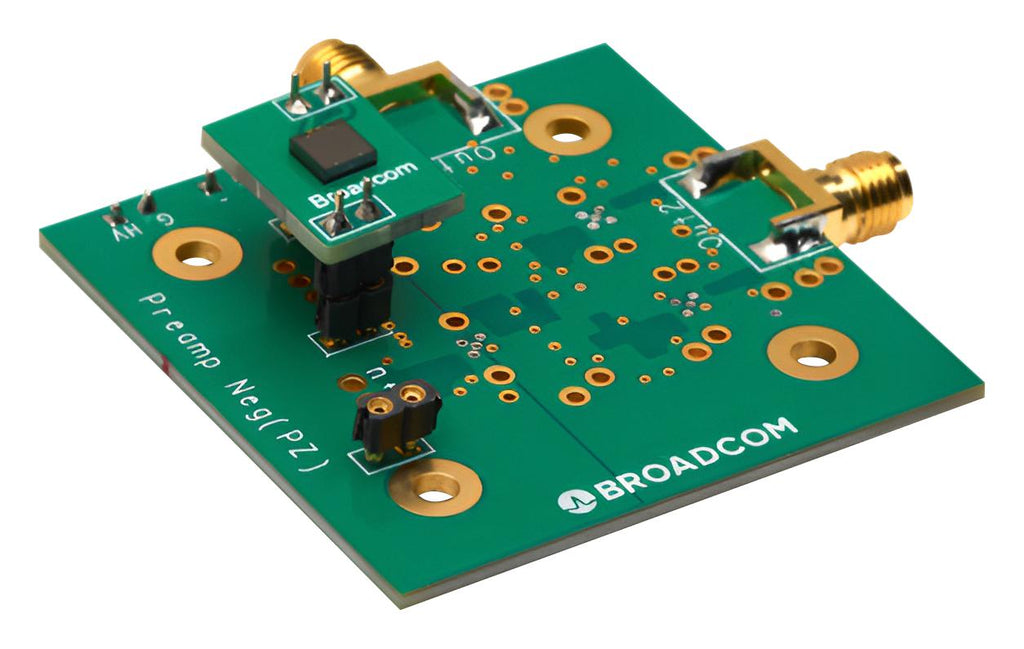

AFBR-S4E001 is a NUV-MT SiPM evaluation kit for silicon photomultipliers in a single package. It is designed to be used as an evaluation platform for the AFBR-S4NxxPyy4M SiPM family. It is designed for applications targeting at detection of short light pulses/flashes from, e.g. pulsed lasers or scintillators. Typical applications include prototyping, device characterization, X-ray and gamma-ray spectroscopy, PET, fluorescence detection and cytometry.
- Amplifier PCB: two 50 ohm outputs, operating temperature range from -20°C to 50°C
- DC readout PCB: over 50 ohm load DC, no amplification stage, compatible with Thorlabs SM01 cage frame
Contents
1x evaluation board with amplified energy and timing output, 1x round DC evaluation PCB (unamplified output), 1x AFBR-S4N22P014M SiPM (mounted on a test PCB), 1x AFBR-S4N44P014M SiPM (mounted on a test PCB), 1x AFBR-S4N66P014M SiPM (mounted on a test PCB).
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Other details
| Brand | BROADCOM |
| Part Number | AFBR-S4E001 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 37956.13 |
| 3-5 | ₹ 37568.82 |
| 5-10 | ₹ 36794.2 |
| 10+ | ₹ 36019.59 |
Bulk discount will be automatically applied during checkout based on quantity.
