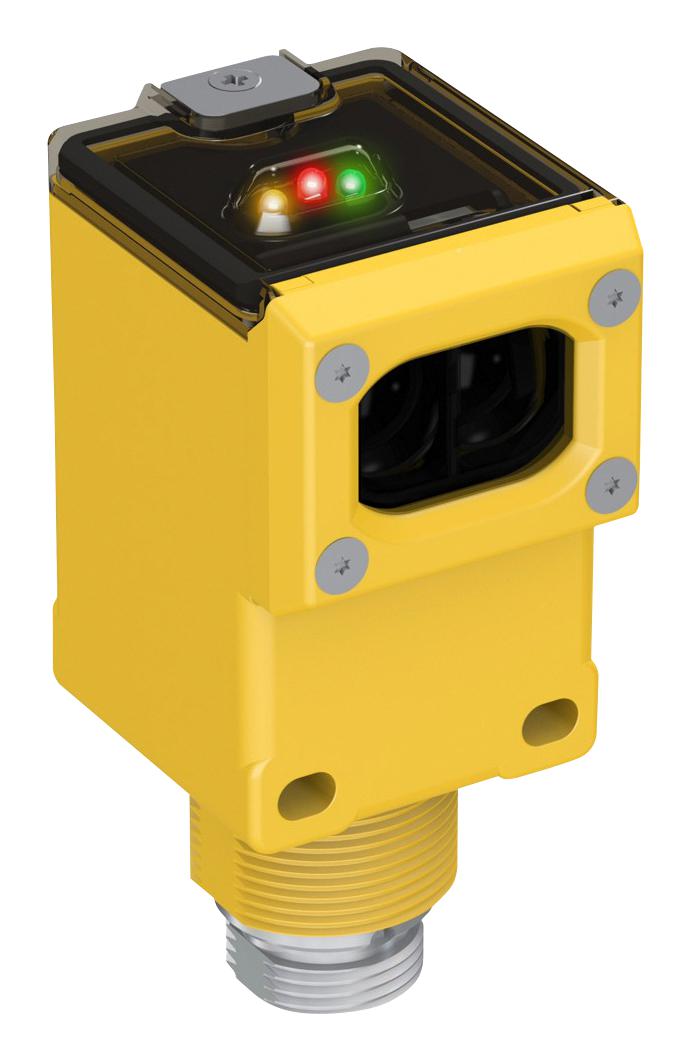

BANNER ENGINEERING Q45VR3LVQ Photo Sensor, 9 m, SPDT Relay, Non-Polarized Retroreflective, 12 to 250 VDC, Q45 Series

Q45VR3LVQ is a Q45 series rugged rectangle sensor. Status indicator LEDs for power, signal, and output are clearly visible beneath a raised dome in the sensor�s transparent o-ring-sealed polycarbonate cover. Also located beneath the sensor�s o-ring-sealed cover are controls for light/dark operate selection and the sensitivity adjustment.

• 0.08 to 9m (3in to 30ft) range, 5-pin Mini-style QD cable, non-polarized
• Universal 12 to 250VDC or 24 to 250VAC supply voltage range
• SPDT electro-mechanical relay output type, IP67 rating
• Thermoplastic primary housing material, E/M relay input output
• 9000mm max sensing distance, SPDT e/m relay output, selectable light/dark operate
• Integral QD connection, 7/8inch (mini) quick disconnect type
• Advanced 1-piece photoelectric sensor with outstanding optical performance, extremely rugged design
• Electromechanical relay for economical, high-capacity switching and immunity to electrical noise
• Highly visible power, signal (AID� System), and output indicator LEDs
• Operating temperature range from -25 to 55°C

Warnings

Not to be used for personnel protection. Never use this device as a sensing device for personnel protection. Doing so could lead to serious injury or death.
