Description
Product Overview

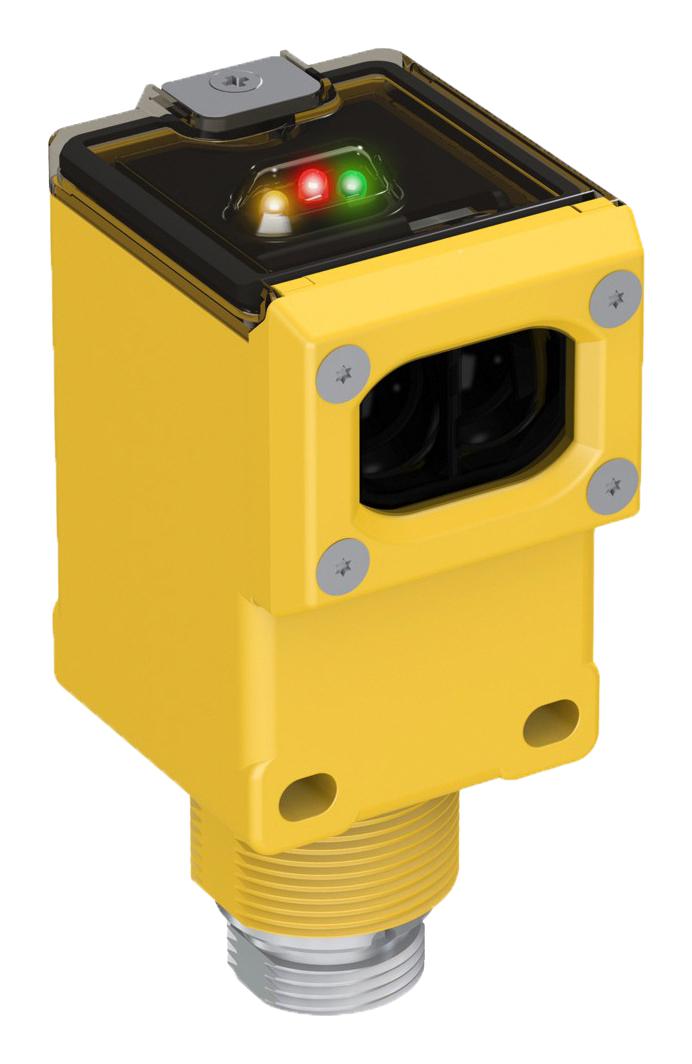

Q45VR2DLQ is a Q45 series rugged rectangle sensor. It has status indicator LEDs for power, signal, and output are clearly visible beneath a raised dome in the sensor�s transparent o-ring-sealed polycarbonate cover. Also located beneath the sensor�s o-ring-sealed cover are controls for light/dark operate selection and the sensitivity adjustment.
- 5-pin Mini-style QD cable, long range is 1.8m (6ft)
- IP67 IP rating, thermoplastic primary housing material
- E/M relay input output, 6000ms max sensing distance, SPDT e/m relay output
- 90 to 250VAC power supply/supply voltage range, integral QD connection
- 7/8inch (mini) quick disconnect type, quick disconnect type operation
- 15ms output response time, 500µs repeatability
- NEMA 6P rating, 90% at 50°C maximum op. relative humidity
- Operating temperature range from -40 to 70°C
- Advanced 1-piece photoelectric sensors with outstanding optical performance, extremely rugged design
- Electromechanical relay for economical, high-capacity switching and immunity to electrical noise
Warnings
Not to be used for personnel protection. Never use this device as a sensing device for personnel protection. Doing so could lead to serious injury or death.
Product details
Other details
| Brand | BANNER ENGINEERING |
| Part Number | Q45VR2DLQ |
| Quantity | Each |
| Technical Data Sheet EN |  |
