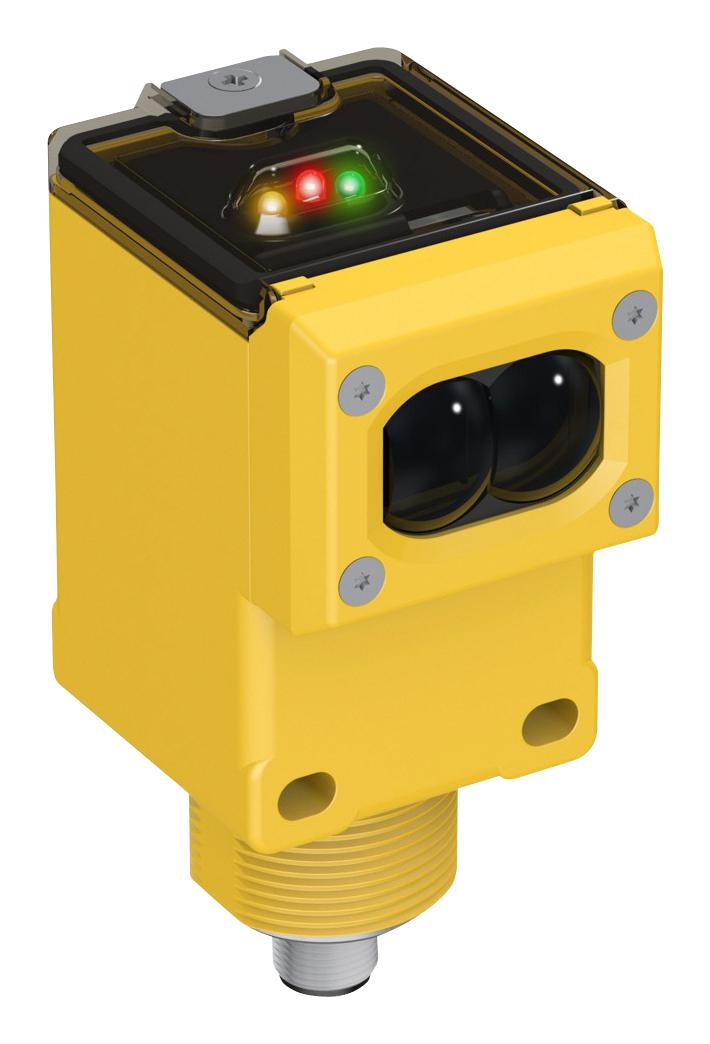

BANNER ENGINEERING Q45BB6LVQ5 Photo Sensor, 9 m, NPN / PNP, Non-Polarized Retroreflective, 10 to 30 VDC, Q45 Series

Q45BB6LVQ5 is a Q45 series rugged rectangle sensor. It has status indicator LEDs for power, signal, and output are clearly visible beneath a raised dome in the sensor�s transparent oring-sealed polycarbonate cover. Also located beneath the sensor�s o-ring-sealed cover are controls for light/dark operate selection and the sensitivity adjustment.

• Advanced 1-piece photoelectric sensor with outstanding optical performance, extremely rugged design
• Selectable light/dark operate, 2ms output response time
• Highly visible power, signal (AID� System ), and output indicator LEDs
• Designed to withstand 1200psi washdown; exceeds its NEMA 6P and IEC IP67 rating
• 0.08 to 9m (3in to 30ft) range, 4-pin Euro-style QD cable
• 10VDC to 30VDC supply voltage, bipolar NPN/PNP output type
• Rectangular housing style, thermoplastic primary housing material
• Discrete input output, 450mm max sensing distance, integral QD connection
• M12 quick disconnect type, NEMA 6P rating, 90% at 50°C max op. relative humidity
• Operating temperature range from -40 to 70°C

Warnings

Not to be used for personnel protection. Never use this device as a sensing device for personnel protection. Doing so could lead to serious injury or death.
