Description
Product Overview

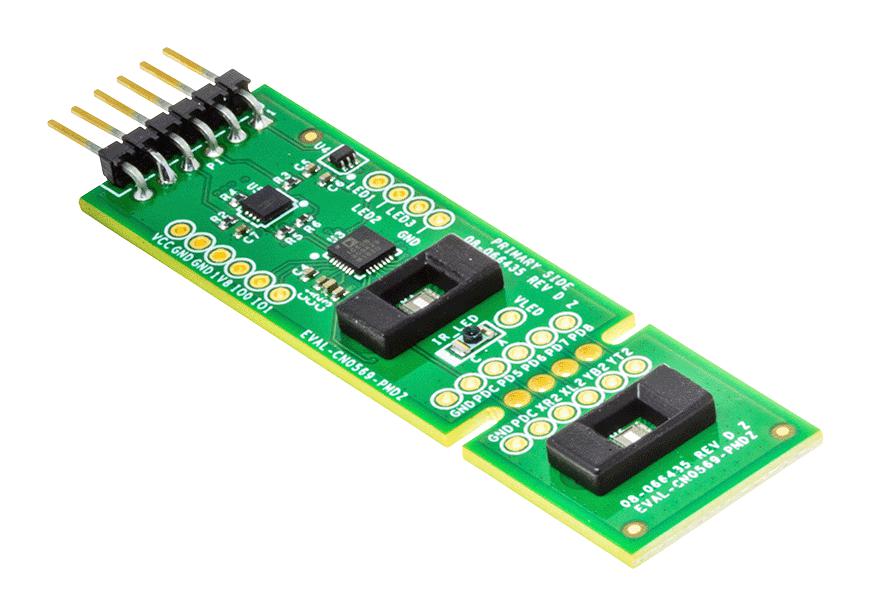

EVAL-CN0569-PMDZ is a 4-layer printed circuit board (PCB) that allows evaluation of the CN-0569 infrared light angle sensor module for gesture recognition. The board is fabricated with a 0.5 oz./1 oz. copper cladding (external layers overplated to 1.5 oz.) and IPC-4101 (or IPC-4103) laminates and bonding materials.
- Designed to use the I²C Pmod hardware interface
- Evaluation board uses the standard 1 x 6, 0.1" (2.54mm) right-angle male header for I²C Pmod device
- Small form-factor with PCB dimension of 68.58mm × 20.32mm x 1.5748mm
- 2 x 3D-printed optical baffles included with EVAL-CN0569-PMDZ for use with onboard ADPD2140 sensors
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | EVAL-CN0569-PMDZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 5927.32 |
| 3-5 | ₹ 5866.84 |
| 5-10 | ₹ 5745.88 |
| 10+ | ₹ 5624.91 |
Bulk discount will be automatically applied during checkout based on quantity.
