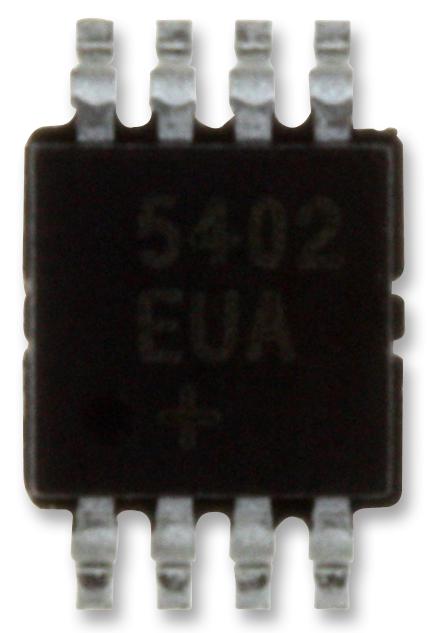

ANALOG DEVICES DS1721U+ Temperature Sensor IC, 2Wire, Digital, ± 1°C, -55 °C, 125 °C, µSOP, 8 Pins

DS1721U+ is a 2-wire digital thermometer and thermostat. It provides 12-bit temperature readings, which indicate the temperature of the device. Thermostatic settings and temperature readings are all communicated to/from the DS1721 over a simple 2-wire serial interface. No additional components are required; the device is truly a �temperature-to-digital� converter. The DS1721 has three address bits that allow a user to multidrop up to eight sensors along the 2-wire bus, greatly simplifying the bussing of distributed temperature sensing networks. The thermal alarm output, TOUT, is active when the temperature of the device exceeds a user-defined temperature TH. The output remains active until the temperature is equal to or below the user-defined temperature TL, allowing for any hysteresis necessary. Applications for DS1721 include personal computers/services, cellular telephones, office equipment, or any microprocessor-based, thermally sensitive system.

• Temperature measurements require no external components with ±1°C accuracy
• Temperature resolution is configurable from 9 to 12 (default) bits (0.5°C to 0.0625°C resolution)
• Maximum conversion time (9-bit resolution) of 93.75 ms
• Thermostatic settings are user-definable
• Data is read/written via a 2-wire serial interface (open drain I/O lines); 3-bit addressability
• Wide power supply range (2.7V - 5.5V)
• Standby current is 0.8µA max at -55°C to +125°C; 2.7V ? VDD ? 5.5V
• 8-pin uSOP package
• Measures temperatures from -55°C to +125°C
