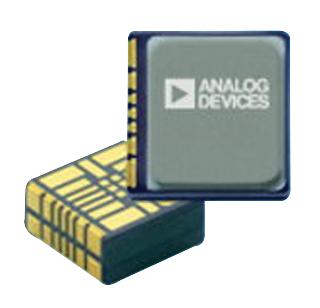

ANALOG DEVICES ADXL356BEZ-RL7 MEMS Accelerometer, ± 10g, ± 20g, X, Y, Z, LCC, 14 Pins, 80mV/g, 40mV/g

ADXL356BEZ-RL7 is a low noise, low drift, low power, 3-axis MEMS accelerometer. It offers industry-leading noise, minimal offset drift over temperature, and long-term stability, enabling precision applications with minimal calibration. The low noise of the ADXL356 over higher frequencies is ideal for condition-based monitoring and other vibration-sensing applications. It is used in applications such as inertial measurement units (IMUs)/attitude and heading reference systems (AHRSs), platform stabilization systems, structural health monitoring, seismic imaging, tilt sensing, robotics, and condition monitoring.

• Hermetic package offers optimal long-term stability, ±10, ±20 measurement range
• User-adjustable analogue output bandwidth, data interpolation routine for synchronous sampling
• Programmable high- and low-pass digital filters, 3.3V specified voltage
• VSUPPLY with internal regulator from 2.25V to 3.6V
• Resonant frequency is 5.5KHz typical at (TA = 25°C, VSUPPLY = 3.3V)
• Nonlinearity is 0.1% FSR typical at (TA = 25°C, VSUPPLY = 3.3V)
• Bandwidth is 2.4KHz typical at (TA = 25°C, VSUPPLY = 3.3V)
• Vibration rectification error is <lt/>0.1g typical at (TA = 25°C, VSUPPLY = 3.3V)
• Turn on time is <lt/>10ms typical at (TA = 25°C, VSUPPLY = 3.3V)
• Operating temperature range from -40°C to +125°C, 14-terminal LCC package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
