AMS OSRAM GROUP TCS3530-EVM Evaluation Kit, TCS3530, Ambient Light & Colour Sensor, EVM Daughter Card, EVM Controller Board

TCS3530-EVM is a TCS3530 evaluation kit comes with everything needed to evaluate the TCS3530 true colour ambient light sensor module. The evaluation kit comprises of a main controller board with an EVM microcontroller, an industry-standard USB 2.0 interface (with a USB cable), a TCS3530 module daughter card, "plug-n-play" USB HID class drivers, software documentation, and GUI software allowing users to control the ambient light sensor settings as the PIC takes the TCS3530 I²C digital outputs to calculate ambient light sensing and flicker detection. The TCS3530 features XYZ true colour channels + IR channel + 2Hg channels, ultra-high ALS and colour sensitivity, flicker detection up to 7KHz (14kS raw data), integrated diffuser in package, 0.18µ process technology with 1.8V/1.2V I²C and I³C, factory calibrated with multiple light-sources, area efficient 2.5 x 1.8 x 1.5mm OLGA package (8-pin). Suitable for Mobile & wearables (display management) applications.

• Provides high-accuracy colour sensor mimicking the human eye
• Allows calculation of chromaticity coordinates and light source detection
• Simplifies design -no diffuser or accurate aperture needed
• Simplifies smartphone production flow � simple end of line calibration
• Enables accurate and stable measurement in low light conditions
• Compensates for part-to-part filter variation
• Reduce board space requirements and enable low-profile system design

Contents

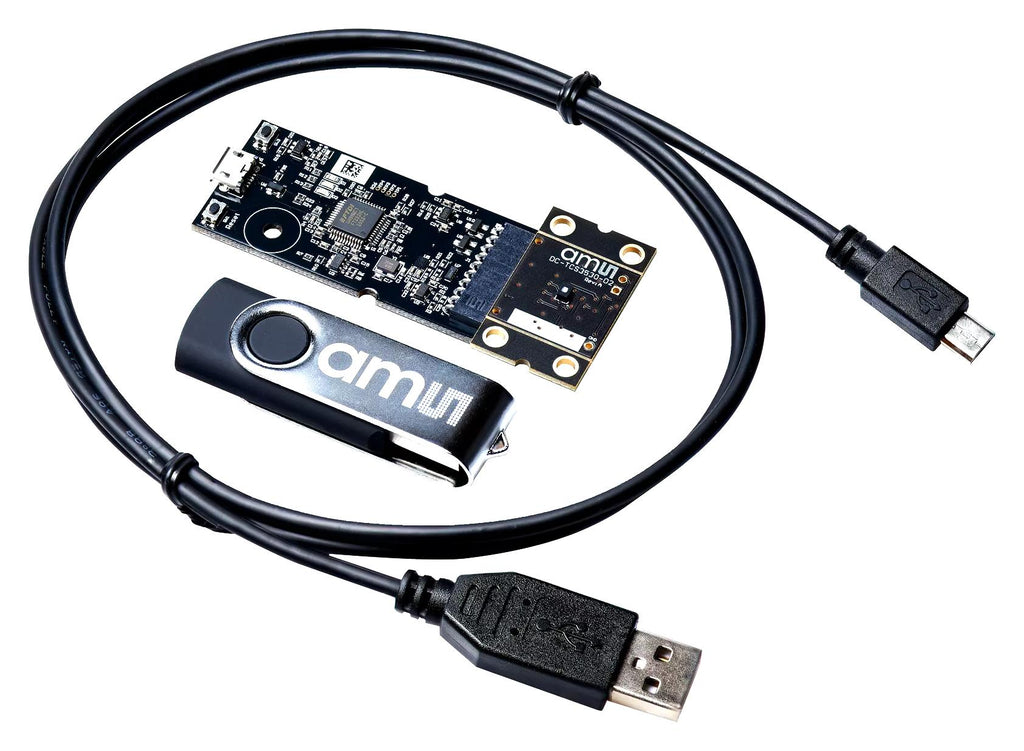

Main controller board with an EVM microcontroller, Industry standard USB 2.0 interface (with an USB cable), TCS3530 module daughter card, "plug-n-play" USB HID class drivers, Software documentation, and GUI software.
