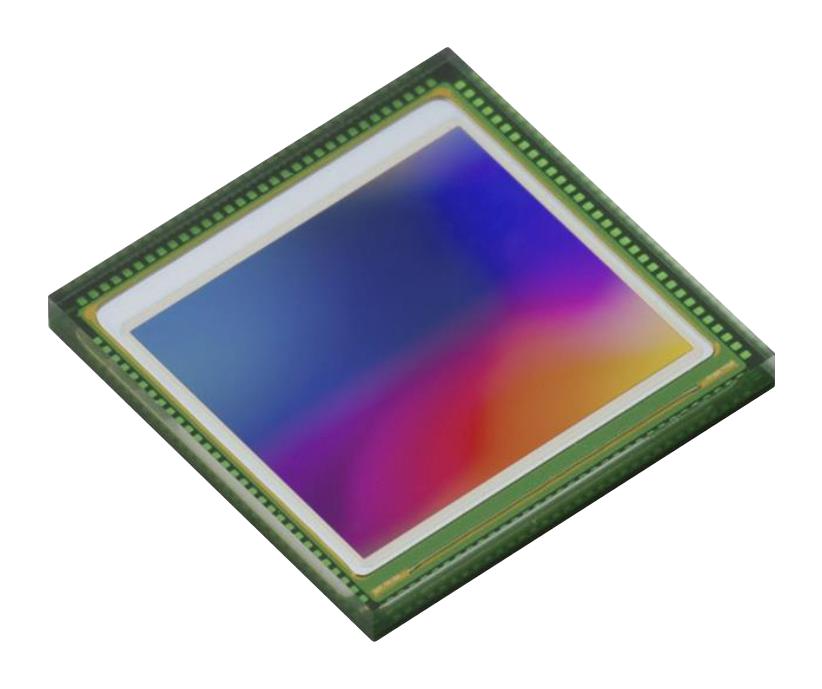

AMS OSRAM GROUP MIRA220-2QI1WA 500U FT SE Image Sensor, 2.79µm x 2.79µm, 90, RGB, CSP

MIRA220-2QI1WA 500U FT SE is a 1/2.7� 2.2MP NIR enhanced global shutter image sensor with a small 2.79 ?m pixel size. It has excellent low light sensitivity made possible by a state-of-the-art stacked BSI technology. With an effective resolution of 1600 × 1400 and a maximum bit depth of 12bits, the sensor supports on-chip operations like external triggering, windowing, horizontal or vertical mirroring. The maximum frame rate is 90fps at full resolution and bit depth. The sensor has a MIPI CSI-2 interface to allow easy interfacing with a plethora of processors and FPGAs. On-chip registers can be accessed via the standard I²C interface for easy configuration of the sensor. Application includes mobile, facial authentication, AR/VR, active stereo vision, structured light vision, smart home appliances, drones, QR readers, smart wearable devices, automatic identification and data capture (AIDC), SLAM for robotics.

• Mono type, plain glass, protective film
• Compact size with high resolution and bit depth
• High speed applications, 90fps global shutter with CDS
• Use in low light condition, high sensitivity
• Compact size, small die size achieved via state-of-the-art stacked BSI technology
• NIR enhanced with high sensitivity, extended battery operation, low power consumption
• Class leading QE at 940 nm combined with high sensitivity, industry leading PLS at 940nm
• On chip noise reduction, digital CDS and row noise correction
• Reduced off-chip processing, on chip defect pixel detection and correction
• CSP package
