Description
Product Overview

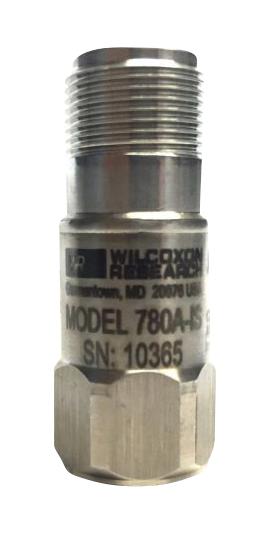

780A-IS is an intrinsically safe compact industrial accelerometer sensor.
- Intrinsic safety certification, API 670 compliant, rugged design, compact size, lightweight
- 100mV/g sensitivity at (±5%, 25°C), 80g peak acceleration range
- 1% amplitude nonlinearity, ±3dB frequency response from 0.4 to 14,000Hz
- 30KHz resonance frequency, hermetic sealing
- Voltage source range from 18 to 30VDC, current regulating diode range from 2 to 10mA
- 100 ohm maximum output impedance, 12VDC bias output voltage
- 316L stainless steel case material, 1/4-28 UNF tapped hole mounting
- 2 pin, MIL-C-5015 style output connector, R6 type mating connector
- J10/J9T2A cabling, 500g peak vibration limit, 5,000g peak shock limit
- Operating temperature range from -55°C to +120°C
Contents
Intrinsically Safe compact industrial accelerometer sensor, SF6 mounting stud, Calibration data (level 2).
Product details
Other details
| Brand | AMPHENOL WILCOXON |
| Part Number | 780A-IS |
| Quantity | Each |
| Technical Data Sheet EN |  |
