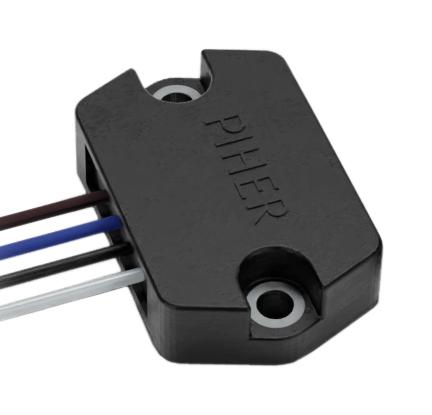

AMPHENOL PIHER SENSORS AND CONTROLS TSDA-A-IR045-HM-W Inclinometer, Analog, ± 45°, 0.5V to 4.5V, Horizontal, Wire Leads

TSDA-A-IR045-HM-W is a TSDA series dual-axis inclinometer tilt sensor. It is a reliable and precise sensor and ideal for applications where fast response and high accuracy are needed. Based on mechanics-free MEMS technology this inclinometer accurately measures inclination, tilt and angle in harsh environmental conditions. With its ability to measure angles up to 360° with an accuracy of <lt/>0.5° over the full temperature range, it is perfect for use in heavy-duty applications such as load monitoring, levelling and boom angle monitoring. The application includes mobile and stationary cranes, lift platforms, autonomous vehicles, conveyor systems, tip-over protection, bucket/chassis/boom angle, weighing systems, inclination-based engine management, solar trackers angle, wind turbines rotor angle, construction, mining and agriculture machines.

• Digital signal processing, filter algorithms
• Dual axis combined gyroscope and accelerometer
• Fully sealed (IP69K) for use in harsh environments
• Supply voltage range from 8 to 36V, output voltage range from 0.5 to 4.5V
• Supply current ranges from 15 to 45mA, 2.5V typ offset voltage
• 100Hz typ refresh rate, typical error is ±0.15° (at 25°C; Vic=12V)
• Maximum error is ±0.5° (-40°C to +85°C; Vcc=12V)
• Analog output, ±45° inclination range, horizontal mounting, wire connection
• Operating temperature range from -40°C to +85°C
