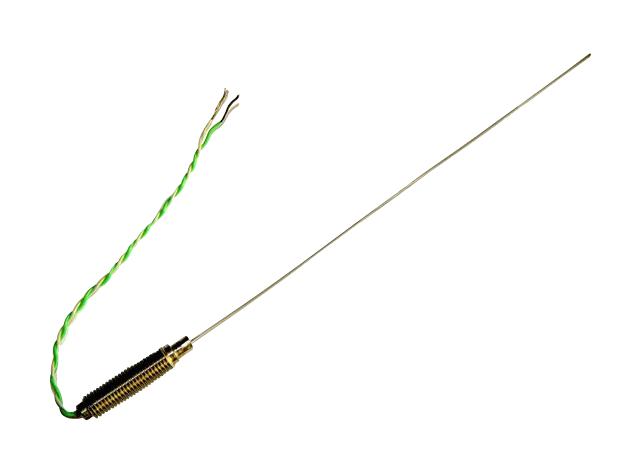

MD-GSK-S05-500-P5-I is a mineral insulated type K thermocouple - 0.5mm GHJ. It is a fast response type K thermocouple with grounded hot junction, 310 stainless steel sheath, threaded pot seal and tails. 310 stainless steel provides good corrosion and oxidation resistance to suit a wide range of processes, satisfactorily operates in sulphur bearing atmospheres. Typical applications include brick & cement kilns, glass industry, heat treatment and annealing furnaces, power stations, flues, heat exchangers etc. Termination is 100mm PFA PTFE twin twisted 7/0.2mm tails, +green/-white colour coded in accordance with IEC 584-3.
- 0.5mm diameter, hot junction of thermocouple grounded to outer sheath for very fast response
- Highly flexible, sheath can be bent/formed to suit many applications and processes
- Probe temperature range -40°C to +750°C, M8 x 1.0mm fine pitch threaded pot seal (200°C)
- Conforms to IEC 584
- Sensor type is type K nickel chromium/nickel aluminium to IEC 584-1&2
- Single element, hot junction grounded to sheath
- 500mm probe length, green positive tail wire, white negative tail wire
Product details
| Thermocouple Type:
K
|
| Sensing Temperature Min:
-40°C
|
| Sensing Temperature Max:
750°C
|
| Sensor Body Material:
Stainless Steel
|
| Lead Length - Imperial:
3.94"
|
| Lead Length - Metric:
100mm
|
| Probe Length - Imperial:
19.7"
|
| Probe Length - Metric:
500mm
|
| Probe Diameter - Imperial:
0.02"
|
| Probe Diameter - Metric:
0.5mm
|
| Product Range:
-
|
Other details
| Brand |
LABFACILITY |
| Part Number |
MD-GSK-S05-500-P5-I |
| Quantity |
Each |
