Description

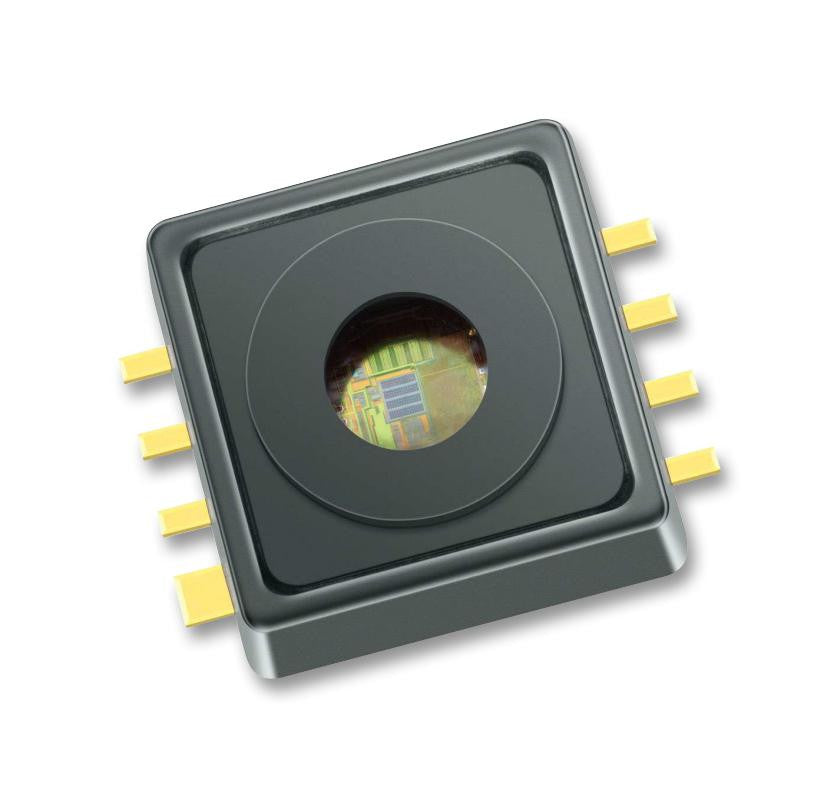

The KP235 is a miniaturized Analogue Barometric Air Pressure Sensor based on a capacitive principle. It is surface micro machined with a monolithic integrated signal conditioning circuit implemented in BiCMOS technology. The sensor converts a pressure into an analogue output signal. The calibrated transfer function converts a pressure of 40 to 115kPa into a voltage range of 0.5 to 4.5V. The sensor has been primarily developed for measuring barometric air pressure.
- High precision pressure sensing (�1.2kPa)
- Ratiometric analogue output
- Broken wire detection
- High sensitivity
Applications
Sensing & Instrumentation, Automotive, Industrial, Consumer Electronics, Medical, Test & Measurement
Product details
| Operating Pressure Min | 40kPa |
| Operating Temperature Min | -40�C |
| Sensor Case Style | SOF |
| Operating Temperature Max | 125�C |
| Sensitivity, V/P | 53.3mV/kPa |
| No. of Pins | 8Pins |
| Pressure Type | Absolute |
| Product Range | - |
| Automotive Qualification Standard | - |
| Supply Voltage Min | 4.5V |
| Operating Pressure Max | 115kPa |
| Packaging | Cut Tape |
| Supply Voltage Max | 5.5V |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | INFINEON |
| Part Number | KP235XTMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Application Note EN | |
