Description
Product Overview

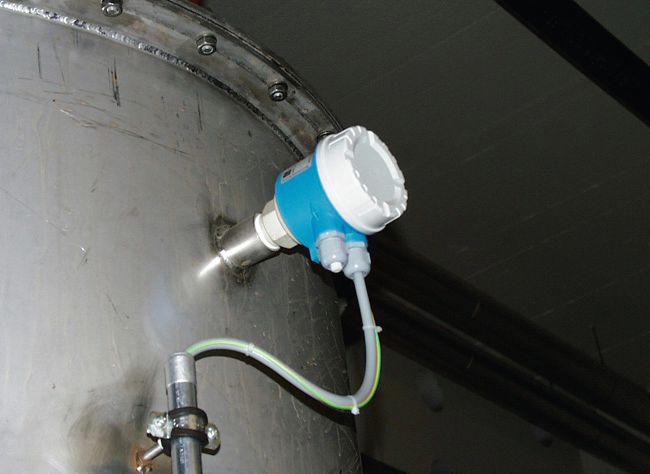

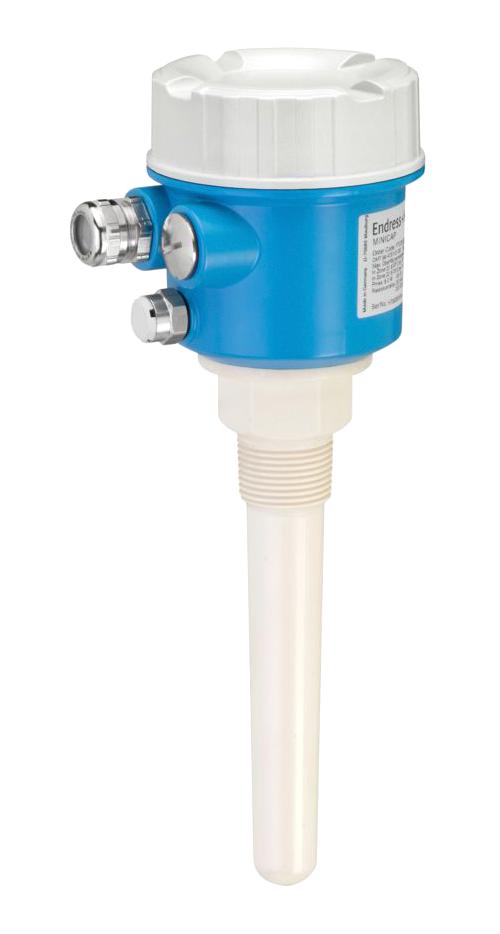

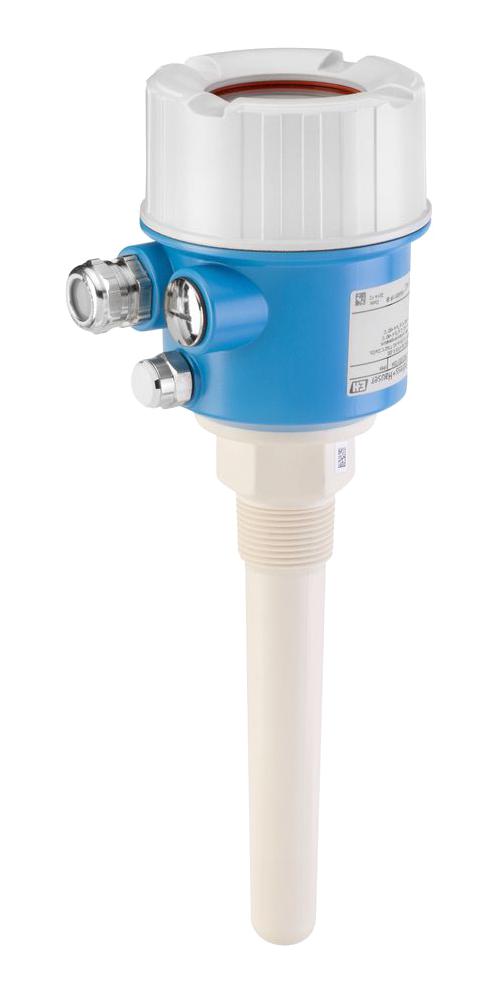

FTC260-BA4J1 is a capacitance point level detection minicap. It is a simple and cost-effective rod probe for point level detection in bulk solids, particularly suited to applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids.
- ATEX II 1/2D approval, thread EN10226 R1, PPS process connection
- F34 Alu IP66/gland M20 NEMA type 4 enclosure housing/cable entry
- Relay 20 to 253VAC/20 to 55VDC switch output, simple mounting and commissioning without calibration
- Mechanical safety, cost-efficiency and long operating life due to no wearing parts
- High operational safety and reliability due to active build-up compensation
- ?r ? 1.6 measuring range, 0.5s switching delay when free or covered
- Protection class to EN 61010-1 (class II)
- PNP transistor output relay output (potential-free change-over contact / SPDT) communication
- Process pressure range from -14.5 to +360psi, aluminium housing material
- Ambient temperature range from -40°C to +70°C
Product details
Other details
| Brand | ENDRESS+HAUSER |
| Part Number | FTC260-BA4J1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
